Ridi Leuchten 0627897 ROBUST NDWS840T2000 LED ceiling light

Ridi Leuchten 0627897 ROBUST NDWS840T2000 LED ceiling light

In stock

SKU: 1039167

Price on request

€637.36

€0

Overview

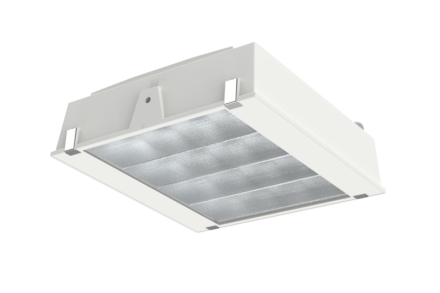

Surface-mounted industrial luminaire, protection class IP66 for ceiling, pendant or mounting rail mounting. Sturdy luminaire housing made of die-cast aluminum, white, powder-coated, color similar to RAL9016. RIDI LED modules designed as a linear board, equipped with LEDs with increased resistance to harmful gases. Pane made of toughened safety glass (ESG), structured, attached to the housing with stainless steel fasteners and secured with screws. Parabolic mirror louvre with deep beam made of reflection-enhanced, high-gloss pure aluminum. Installation: surface-mounted ceiling mounting with appropriate accessories. Pendant mounting (chain or rope) with appropriate fastening sets, swing hooks (4 pieces) included. Mounting rail mounting with appropriate accessories. Ball-proof installation only with appropriately marked accessories.

Property	Value
Max. System power:	125 W
Rated luminous flux according to IEC 62722-2-1:	19043 lm
Protection class:	I
Impact resistance:	IK09
Protection class (IP):	IP66
Housing color:	white
Color temperature:	4000 K
Light source:	LED not replaceable
Length:	415 mm
Width:	415 mm
Height/depth:	131 mm
With light source:	yes
Operating device:	LED operating device, current-controlled
Nominal voltage:	220 to 240 V
DALI dimming:	no
Light color:	white
With control gear:	yes
Voltage type:	AC/DC
Material of the housing:	Aluminium
Ball-proof:	yes
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Di mming phase control:	no
dimming phase control:	no
dimming potentiometer (integrated into the device):	no
dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s

Characteristics

HABRUGGED NDWS840T2000

Manufacturer

HAN0627897

GTIN4029299574647

Rated luminous flux according to IEC 62722-2-119043 lm

Operating deviceLED control gear current controlled

Width415 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth131 mm

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributionSymmetrical

Length415 mm

Max. system performance125W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Impact resistanceIK09

IP protection)IP66

Protection classI

Voltage typeAC/DC

Housing materialAluminum
