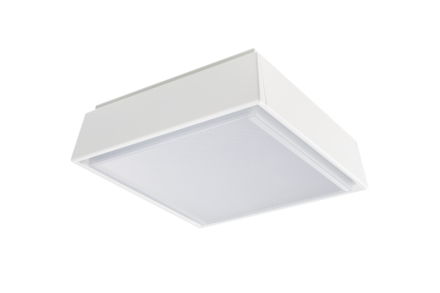

Ridi Leuchten 0637722AH FLAKE-AQ015DAFWS830DPO0150 LED wall/ceiling light

Ridi Leuchten 0637722AH FLAKE-AQ015DAFWS830DPO0150 LED wall/ceiling light

In stock

SKU: 1037928

Price on request

€270.68

€0

Overview

LED surface-mounted luminaire for ceiling and wall mounting, direct beam. Sturdy luminaire housing made of sheet steel, powder-coated, finely structured, satin matt. End pieces made of die-cast aluminum, powder-coated, finely structured, satin matt. LED modules designed as surface boards, high LED density for maximized efficiency and optimized homogeneity. LED driver built into the luminaire housing. Protection type IP20, protection class I. Contoured DPO tray made of co-extruded polycarbonate (UV-stabilized) with satin-finished side parts and ultrasonically welded end pieces. Diamond prism structure, embossed prisms, external. Additional opal diffuser inside made of UV-resistant PMMA. Installation: surface mounting with included accessories.

Property	Value
Max. System power:	15 W
Rated luminous flux according to IEC 62722-2-1:	1440 lm
Suitable for number of lamps:	1
Length:	150 mm
Width:	150 mm
Height/depth:	51 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	3000 K
Impact resistance:	IK07
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent from the operating device:	yes
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	96 lm/W

Characteristics

HABFLAKE-AQ015DAFWS830DPO0150

Manufacturer

HAN0637722AH

GTIN4029299554298

Rated luminous flux according to IEC 62722-2-11440lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width150 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth51 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy96lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length150 mm

Max. system performance15W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK07

IP protection)IP20

Protection classI

Voltage typeAC/DC

Housing materialSteel
