Ridi Leuchten 0637728AH315 FLAKE-PDI150DAFWS840DPO0650-ED LED pendant light

Ridi Leuchten 0637728AH315 FLAKE-PDI150DAFWS840DPO0650-ED LED pendant light

In stock

SKU: 1038615

Price on request

€766.35

€0

Overview

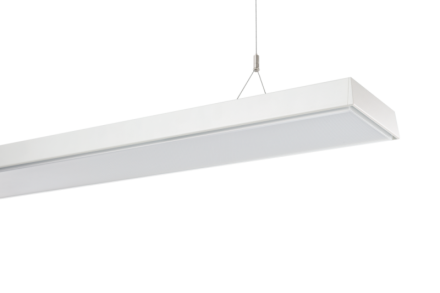

LED pendant light for single or strip mounting, direct indirect light distribution. Stable light housing made of sheet steel, powder-coated, finely structured, satin finish. Light front parts made of die-cast aluminum, powder-coated, finely structured, satin finish (see accessories, to be ordered separately). LED modules designed as a surface board, high LED density for maximized efficiency and optimized homogeneity. LED driver built into light housing. Protection rating IP20, protection class I. Contoured DPO tray made of coextruded polycarbonate (UV-stabilized) with satin-finished side parts and ultrasonically welded front parts. Diamond prism structure for glare control for screen-compatible workplace lighting (UGR

n on

Property	Value
Max. system power:	50 W
Rated luminous flux according to IEC 62722-2-1:	6330 lm
Color temperature:	4000 K
Length:	1485 mm
Width:	150 mm
Suitable for number of bulbs:	1
Height/depth:	47 mm
Protection type (IP):	IP20
Protection class:	I
Operating device:	LED operating device, current-controlled
Housing material:	Steel
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With Operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	no
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	white
Suitable for light strip configuration:	yes
Direct/indirect components separately adjustable:	yes
Light distribution:	symmetrical
Light emission:	direct
Impact resistance:	IK07
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	yes
Light color:	white
Voltage type:	AC/DC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	n a
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s

Characteristics

HABFLAKE-PDI150DAFWS840DPO0650-ED

Manufacturer

HAN0637728AH315

GTIN4029299554373

Suspension includedNo

Rated luminous flux according to IEC 62722-2-16330lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width150 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyYes

Color temperature4000K

Color rendering index CRI80-89

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth47 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1485 mm

Max. system performance50W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK07

IP protection)IP20

Protection classI

Voltage typeAC/DC

Cover materialPlastic opal

Housing materialSteel
