Ridi Leuchten 0650598 IHLS-L 180/935-840 SB LED ceiling light

Ridi Leuchten 0650598 IHLS-L 180/935-840 SB LED ceiling light

In stock

SKU: 1034808

Price on request

€588.79

€0

Overview

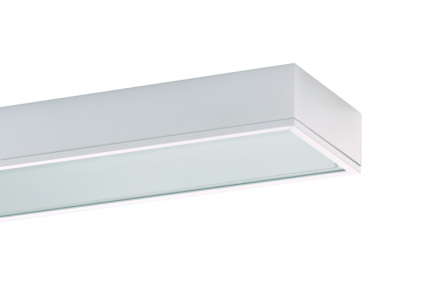

Surface-mounted industrial light, protection class IP64 for ceiling, pendant or rail mounting. Includes RIDI LED light source L-TUBE-B. Sturdy light housing made of galvanized sheet steel, white powder-coated, color similar to RAL9016. Narrow frame made of extruded aluminum profile with panel made of impact-resistant UV-resistant PMMA. Frame held in the light housing with spring clips, foldable on both sides. Panel SB made of clear PMMA, reflector made of reflection-enhanced, matt anodized pure aluminum with silver coating. Installation: Ceiling mounting without additional accessories using attached hat profiles or without gaps using accessory IHLS-DB ... (to be ordered separately). Pendant mounting on chain or rope using attached hat profiles. DIN rail mounting with mounting clips or standard fasteners.

Property	Value
Max. System power:	69 W
Rated luminous flux according to IEC 62722-2-1:	7574 lm
Suitable for number of lamps:	1
Length:	1500 mm
Width:	200 mm
Height/depth:	80 mm
Protection rating (IP):	IP64
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	65000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED replaceable
Socket:	other
With control gear:	yes
Cover material:	transparent plastic
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear, current-controlled
Suitable for recessed mounting:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Energy efficiency class of the included replaceable lamp:	D
Suitable for lamp power:	58 W
Luminous efficacy:	109 lm/W

Characteristics

HABIHLS-L 180/935-840 SB

Manufacturer

HAN0650598

GTIN4029299489576

Rated lifetime L80/B10 at 25 °C65000 hours

Rated luminous flux according to IEC 62722-2-17574lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width200 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power58W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Height/Depth80 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy109lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1500 mm

Max. system performance69 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Impact resistanceIK08

IP protection)IP64

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
