Ridi Leuchten 0660082 IHLS-L 354/1230-840 SB-DA LED ceiling light

Ridi Leuchten 0660082 IHLS-L 354/1230-840 SB-DA LED ceiling light

In stock

SKU: 1034825

Price on request

€892.25

€0

Overview

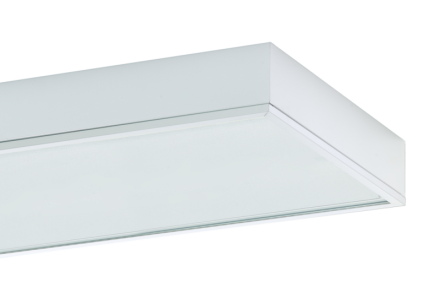

Surface-mounted industrial light, protection class IP64 for ceiling, pendant or rail mounting. Includes RIDI LED light source L-TUBE-B. Sturdy light housing made of galvanized sheet steel, white powder-coated, color similar to RAL9016. Narrow frame made of extruded aluminum profile with panel made of impact-resistant UV-resistant PMMA. Frame held in the light housing with spring clips, foldable on both sides. Panel SB made of clear PMMA, reflector made of reflection-enhanced, matt anodized pure aluminum with silver coating. Installation: Ceiling mounting without additional accessories using attached hat profiles or without gaps using accessory IHLS-DB ... (to be ordered separately). Pendant mounting on chain or rope using attached hat profiles. DIN rail mounting with mounting clips or standard fasteners.

Property	Value
Max. System power:	102 W
Rated luminous flux according to IEC 62722-2-1:	11560 lm
Suitable for number of lamps:	3
Length:	1200 mm
Width:	370 mm
Height/depth:	80 mm
Protection rating (IP):	IP64
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	70000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Cover material:	transparent plastic
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
DALI dimming:	yes
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Energy efficiency class of the included replaceable light source:	D
Suitable for lamp power:	33 W
Luminous efficacy:	113 lm/W

Characteristics

HABIHLS-L 354/1230-840 SB-DA

Manufacturer

HAN0660082

GTIN4029299450767

Rated lifetime L80/B10 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-111560lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width370 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power33W

Suitable for number of lamps3

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Height/Depth80 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy113lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1200 mm

Max. system performance102W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK08

IP protection)IP64

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
