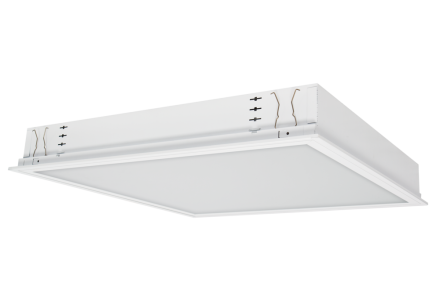

Ridi Leuchten 0822828 EBRE-LED 418/5200-840 OS LED grid recessed luminaire

Ridi Leuchten 0822828 EBRE-LED 418/5200-840 OS LED grid recessed luminaire

In stock

SKU: 1033858

Price on request

€238.92

€0

Overview

LED recessed light, single light for ceiling installation, for ceiling module 625. Sturdy light housing made of sheet steel, white (similar to RAL9016). Light guide held in the light housing with spring clips, foldable on both sides and automatically connected to the protective conductor. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the light housing. Operation of the LED modules with protective extra-low voltage less than 60 volts (SELV-compliant). Protection class on the room side similar to IP40 and on the ceiling side IP20. OS frame made of extruded aluminum profile with inserted opal artificial glass pane made of UV-resistant PMMA. Pane made of high-quality material, frosted on both sides, with a high transmission rate of 72%. Homogeneous illumination without visible LED points. Installation: Installation in various ceiling systems with the appropriate fastening kit, or insertion in ceiling systems with visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation.

Property	Value
Max. System power:	32 W
Rated luminous flux according to IEC 62722-2-1:	4196 lm
Suitable for number of lamps:	2
Length:	622 mm
Width:	622 mm
Height/depth:	90 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	100000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	Plastic opal
Without dimming function:	yes
Installation width:	604 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed installation:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	604 mm
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Suitable for lamp power:	14 W
Luminaire luminous efficacy:	131 lm/W

Characteristics

HABEBRE-LED 418/5200-840 OS

Manufacturer

HAN0822828

GTIN4029299393149

Rated lifetime L80/B10 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-14196lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width622 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width604 mm

Installation length604 mm

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power14W

Suitable for number of lamps2

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth90 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy131lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length622 mm

Max. system performance32W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP20

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
