Ridi Leuchten 0832893 EBRME-LED 228/5000-830 MPS-DA LED recessed luminaire

In stock
SKU: 1034983
€531.60
Into a basketIn the basketGo

Overview

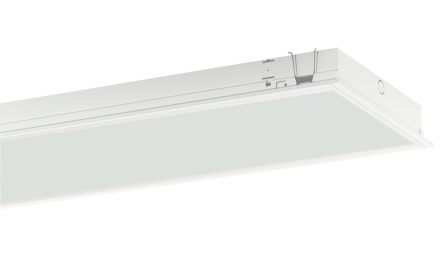

LED recessed light, single light for ceiling installation, for ceiling module 600. Sturdy light housing made of sheet steel, white (similar to RAL9016). Light guide held in the light housing with spring clips, foldable on both sides and automatically connected to the protective conductor. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the light housing. LED modules operate at a safety extra-low voltage of less than 60 volts (SELV-compliant). Protection class on the room side similar to IP40 and on the ceiling side IP20. MPS frame made of extruded aluminum profile with inserted transparent synthetic glass pane made of UV-resistant PMMA with microprism structure to reduce glare for screen-compatible workplace lighting, prisms on the outside. LED points visible as circles on the microprism pane. Installation: Installation in various ceiling systems with the appropriate fastening kit, or insertion installation in ceiling systems with visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation.

Property Value
Max. System power: 32 W
Rated luminous flux according to IEC 62722-2-1: 3515 lm
Suitable for number of lamps: 2
Length: 1197 mm
Width: 297 mm
Height/depth: 60 mm
Protection rating (IP): IP20
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: white
Housing material: steel
Color temperature: 3000 K
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: no
Voltage type: AC
With motion detector: no
With light source: yes
Light source: LED not replaceable
With operating device: yes
Without dimming function: no
Installation width: 279 mm
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: yes
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: yes
Suitable for light strip configuration: no
Suitable for pendant suspension: no
Suitable for surface mounting: no
Suitable for emergency lighting: yes
Installation length: 1179 mm
DMX dimming: no
DSI dimming: no
With air slots: no
LineSwitch dimming: no
Dimming potentiometer (integrated in device): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: yes
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with Push button: no
Dimming depending on the operating device: yes
Suitable for lamp power: 14 W
Luminaire luminous efficacy: 109 lm/W

Characteristics

HABEBRME-LED 228/5000-830 MPS-DA
ManufacturerRidi Leuchten
HAN0832893
GTIN4029299411157
Rated luminous flux according to IEC 62722-2-13515lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Width297 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation width279 mm
Installation length1179 mm
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for lamp power14W
Suitable for number of lamps2
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
Height/Depth60 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy109lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length1197 mm
Max. system performance32W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
IP protection)IP20
Protection classI
Voltage typeAC
Housing materialSteel
