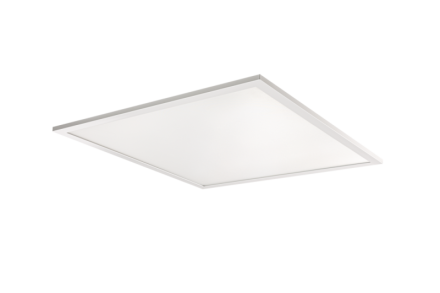

Ridi Leuchten 0832992 FPL3-EQ0622DAWS850865MPS0500 LED recessed light

Ridi Leuchten 0832992 FPL3-EQ0622DAWS850865MPS0500 LED recessed light

In stock

SKU: 1038216

Price on request

€140.30

€0

Overview

LED recessed light, flat design, stable light frame made of optimally thermally dissipating extruded aluminum profile, white powder-coated, similar to RAL9016. Back of light white plastic-coated, fixing of the pane package by screwless frame construction to ensure precise light coupling into the optical system, resulting in high system efficiency and very homogeneous illumination of the light guide. Very high flexibility - PowerSwitch enables the setting of different light levels via DipSwitch. Protection class IP40 on the room side, IP20 on the ceiling side. LED recessed light with microprismatic pane for glare-free lighting. Pane made of non-yellowing PMMA, prisms on the outside. Installation: Lay-in installation in ceiling systems with all-round visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation. Pendant installation with automatic rope clamps, wire rope d=1.2mm, L=1.5m (accessories to be ordered separately). Built-in and surface-mounted installation with appropriate accessories (accessories to be ordered separately).

>no

Property	Value
Max. System power:	33 W
Rated luminous flux according to IEC 62722-2-1:	4015 lm
Length:	620 mm
Width:	620 mm
Height/depth:	13 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	5000 to 6500 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC/DC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	Plastic structured
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	120 lm/W

Characteristics

HABFPL3-EQ0622DAWS850865MPS0500

Manufacturer

HAN0832992

GTIN4029299566659

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-14015lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width620 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000 to 6500 K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth13 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length620 mm

Max. system performance33W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK03

IP protection)IP20

Protection classI

Voltage typeAC/DC

Cover materialPlastic structured

Housing materialAluminum
