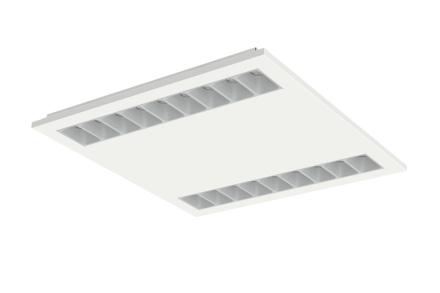

Ridi Leuchten 0838116 SE-EQ0625DAWS840M9S0550 LED grid recessed luminaire

In stock
SKU: 1039160
€253.44
Into a basketIn the basketGo

Overview

LED insert light, single light for ceiling installation in visible support profile, for ceiling module 625. Sturdy luminaire housing made of sheet steel, visible side white (similar to RAL9016). Light control through highly efficient and glare-free light engine M9S with rectangular multi-lens standard reflectors, color light gray. Highly efficient, optical lighting system especially for applications with high requirements for glare-free and visual comfort such as offices and schools. Multiple optical arrays in the system compound LED module + lens optics + reflector. LED driver built into the luminaire. Highly efficient mid-power LED. Repairable and sustainable product, light source and operating device can be replaced by a qualified electrician. Highly efficient, glare-free LED insert light for computer workstation applications. Installation: Insert installation in ceiling systems with all-round visible support rails and inserted ceiling panels. No additional fastening accessories are required for insert installation. Built-in and surface-mounted installation with appropriate accessories (accessories to be ordered separately).

Property Value
Max. System power: 37 W
Rated luminous flux according to IEC 62722-2-1: 5570 lm
Suitable for number of lamps: 4
Length: 622 mm
Width: 622 mm
Height/depth: 50 mm
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 220 to 240 V
Housing color: white
Housing material: steel
Color temperature: 4000 K
Impact resistance: IK03
Color rendering index CRI: 80-89
Suitable for ceiling mounting: no
Rated service life L80/B10 at 25 °C: 78000 h
Suitable for wall mounting: no
Voltage type: AC
With motion detector: no
With light source: yes
Light source: LED not replaceable
With operating device: yes
Without dimming function: no
Installation width: 604 mm
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: LED operating device, current-controlled
Suitable for recessed mounting: yes
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: yes
Suitable for strip light configuration: no
Suitable for pendant suspension: no
Suitable for surface mounting: no
Installation length: 604 mm
Dimming DMX: no
Dimming DSI: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (integrated in device): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: yes
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on operating device: yes
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Luminaire luminous efficacy: 147 lm/W

Characteristics

HABSE-EQ0625DAWS840M9S0550
ManufacturerRidi Leuchten
HAN0838116
GTIN4029299572063
Rated lifetime L80/B10 at 25 °C78000 hours
Rated luminous flux according to IEC 62722-2-15570lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Width622 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation width604 mm
Installation length604 mm
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for number of lamps4
Suitable for light strip configurationNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth50 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy147lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length622 mm
Max. system performance37W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
Impact resistanceIK03
Protection classI
Voltage typeAC
Housing materialSteel
