Ridi Leuchten 0850325 EBRME9-R4X055-3/10ND-OSD LED recessed light

Ridi Leuchten 0850325 EBRME9-R4X055-3/10ND-OSD LED recessed light

In stock

SKU: 1034967

Price on request

€325.42

€0

Overview

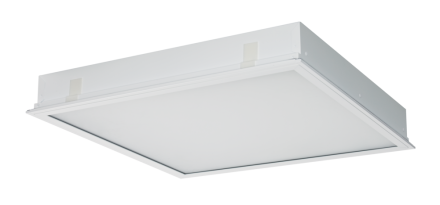

Recessed luminaire, single luminaire, protection class IP54, for ceiling module 600. Sturdy luminaire housing made of galvanized sheet steel, white powder-coated, color similar to RAL9016. The luminaire body has 2 device carriers for the electrical components and for the fastening brackets of the aluminum frame. Frame made of extruded aluminum profile with pane made of UV-resistant PMMA. Frame held in the luminaire housing with a spring clip, foldable on both sides. Seal glued all the way around the edge of the luminaire to seal it to the ceiling. For RIDI-TUBE lamps (to be ordered separately). OSD frame made of extruded aluminum profile with inserted opal synthetic glass pane made of UV-resistant PMMA. With seals depending on the protection class. For RIDI-TUBE lamps. Installation: Installation in various ceiling systems with the appropriate fastening kit, or insertion installation in ceiling systems with visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation.

Property	Value
Max. System power:	27 W
Rated luminous flux according to IEC 62722-2-1:	3034 lm
Suitable for number of lamps:	3
Length:	597 mm
Width:	597 mm
Height/depth:	95 mm
Protection rating (IP):	IP54
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	no
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Cover material:	Plastic opal
Without dimming function:	yes
Installation width:	579 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	579 mm
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Suitable for lamp power:	10 W
Luminaire luminous efficacy:	112 lm/W

Characteristics

HABEBRME9-R4X055-3/10ND-OSD

Manufacturer

HAN0850325

GTIN4029299445572

Rated luminous flux according to IEC 62722-2-13034lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width597 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width579 mm

Installation length579 mm

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power10W

Suitable for number of lamps3

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth95 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy112lm/W

LampsLED replaceable

Light emissionDirect

Light distributionSymmetrical

Length597 mm

Max. system performance27W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP54

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialSteel
