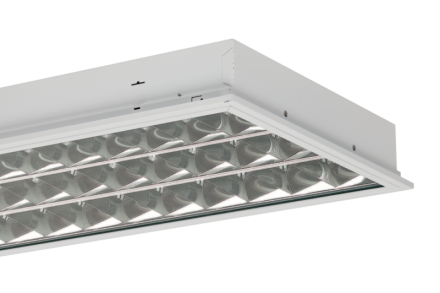

Ridi Leuchten 0850643 EIHLS-L 280/1870-840 SM LED grid recessed luminaire

Ridi Leuchten 0850643 EIHLS-L 280/1870-840 SM LED grid recessed luminaire

In stock

SKU: 1035282

Price on request

€863.51

€0

Overview

Recessed industrial light, protection class IP64 on the room side and IP54 on the ceiling side, individual light closed. Including RIDI LED light source L-TUBE-B. Sturdy light housing made of galvanized sheet steel, white powder-coated, color similar to RAL9016. Built-in head mirror reflector made of reflection-enhanced ultra-pure aluminum with silver coating, matt anodized. Narrow frame made of extruded aluminum profile with pane made of impact-resistant, UV-resistant PMMA. Frame held invisibly in the light housing with spring clips, foldable on both sides with automatic connection to the protective conductor. Seals depending on the protection class and seal foamed all around the edge of the light to seal against the ceiling. Pane made of clear PMMA, for glare control. Parabolic mirror louvre SM made of reflection-enhanced, matt anodized ultra-pure aluminum with silver coating. Reflector made of reflection-enhanced, matt anodised pure aluminium with silver coating, symmetrical distribution. Installation: Prepared for installation in various ceiling systems with appropriate fastening kit (accessory).

Property	Value
Max. System power:	140 W
Rated luminous flux according to IEC 62722-2-1:	16135 lm
Suitable for number of lamps:	2
Length:	1548 mm
Width:	312 mm
Height/depth:	81 mm
Protection rating (IP):	IP64
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Cover material:	Transparent plastic
Without dimming function:	yes
Installation width:	292 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed installation:	yes
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	1529 mm
Design of the grid:	matt
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
GPRS dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Energy efficiency class of the included replaceable light source:	D
Suitable for lamp power:	58 W
Luminaire luminous efficacy:	115 lm/W

Characteristics

HABEIHLS-L 280/1870-840 SM

Manufacturer

HAN0850643

GTIN4029299491258

Execution of the gridFrosted

Rated luminous flux according to IEC 62722-2-116135lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width312 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width292 mm

Installation length1529 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for lamp power58W

Suitable for number of lamps2

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth81 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy115lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1548 mm

Max. system performance140W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Impact resistanceIK08

IP protection)IP64

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
