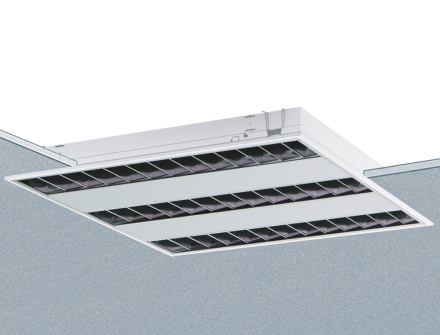

Ridi Leuchten 0860029 EBRE6-R3X055/10DA-SM LED grid recessed luminaire

Ridi Leuchten 0860029 EBRE6-R3X055/10DA-SM LED grid recessed luminaire

In stock

SKU: 1035244

Price on request

€190.07

€0

Overview

LED recessed luminaire, single luminaire for ceiling installation, for ceiling module 625. Luminaire height 60 mm (1-lamp 71 mm). Housing made of sheet steel, with 5 mm low edge, coated white (similar to RAL9016). Light guide held in the luminaire housing with spring clips, foldable on both sides and automatically connected to the protective conductor. Protection class IP20. For RIDI-TUBE lamps. Parabolic mirror louvre SM made of highly reflective, satin matt anodized pure aluminum with silver coating. For RIDI-TUBE lamps. Installation: installation in various ceiling systems with appropriate fastening kit (accessory) or lay-in installation in ceiling systems with visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation.

Property	Value
Max. System power:	27 W
Rated luminous flux according to IEC 62722-2-1:	3393 lm
Suitable for number of lamps:	3
Length:	622 mm
Width:	622 mm
Height/depth:	60 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	no
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Without dimming function:	no
Installation width:	604 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	604 mm
Design of the grid:	matt
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Suitable for lamp power:	10 W
Luminaire luminous efficacy:	125 lm/W

Characteristics

HABEBRE6-R3X055/10DA-SM

Manufacturer

HAN0860029

GTIN4029299424928

Execution of the gridFrosted

Rated luminous flux according to IEC 62722-2-13393lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width622 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width604 mm

Installation length604 mm

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power10W

Suitable for number of lamps3

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth60 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy125lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length622 mm

Max. system performance27W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
