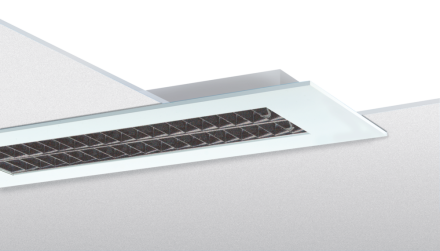

Ridi Leuchten 0860440 ESL-R2X145/35DA-SM LED grid recessed luminaire

Ridi Leuchten 0860440 ESL-R2X145/35DA-SM LED grid recessed luminaire

In stock

SKU: 1035320

Price on request

€354.80

€0

Overview

Single luminaire for renovation for installation in existing luminaire. Housing made of sheet steel, powder-coated white (similar to RAL9016). Smooth housing underside without butt joints and recessed device carrier housing. Easy implementation of luminaires with special dimensions. Versions with DALI electronic ballast, sensors, exhaust air, etc. possible. If required, please enquire at the factory. Mounting kit must be coordinated with the old luminaire, therefore available on request. Parabolic mirror louvre SM made of highly reflective, satin matt anodised pure aluminium with silver coating.

Property	Value
Max. System power:	80 W
Rated luminous flux according to IEC 62722-2-1:	9712 lm
Suitable for number of lamps:	2
Length:	1555 mm
Width:	630 mm
Height/depth:	60 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 to 240 V
Housing color:	white
Housing material:	steel
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	no
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Cover material:	without cover
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Grid design:	matt
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent from the control gear:	yes
Suitable for lamp power:	35 W
Luminaire luminous efficacy:	121 lm/W

Characteristics

HABESL-R2X145/35DA-SM

Manufacturer

HAN0860440

GTIN4029299491449

Execution of the gridFrosted

Rated luminous flux according to IEC 62722-2-19712lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width630 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for lamp power35W

Suitable for number of lamps2

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth60 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy121lm/W

LampsLED replaceable

Light emissionDirect

Light distributionSymmetrical

Length1555 mm

Max. system performance80W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage230 to 240 V

Without dimming functionNo

IP protection)IP20

Protection classI

Voltage typeAC

Cover materialWithout cover

Housing materialSteel
