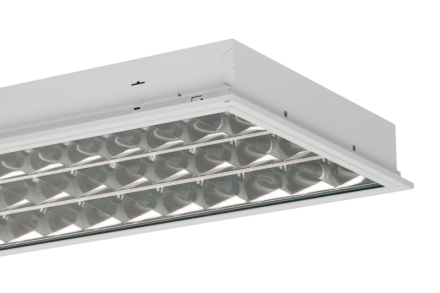

Ridi Leuchten 0860595 ESHL-L 280/1240-840 SM-DA LED recessed light

Ridi Leuchten 0860595 ESHL-L 280/1240-840 SM-DA LED recessed light

In stock

SKU: 1035699

Price on request

€867.62

€0

Overview

Recessed luminaire, single luminaire, closed. Includes RIDI LED bulb L-TUBE-B. Sturdy luminaire housing made of sheet steel, white powder-coated, color similar to RAL9016. End parts with additional breakout openings for power cables or through-wiring. Narrow frame made of extruded aluminum profile with panel made of impact-resistant, UV-resistant PMMA. Frame held invisibly in the luminaire housing with spring clips, foldable on both sides with automatic connection to the protective conductor. Panel made of clear PMMA, parabolic mirror louvre SM made of reflection-enhanced, matt anodized pure aluminum with silver coating. Installation: Prepared for installation in various ceiling systems with the appropriate fastening kit (accessory). When installed with fastening kit 10-713 or 10-717, a 6-point fastening is required for 3-lamp configurations or more. Since there are 4 parts in the set, the corresponding number X must be determined: X = (nx 6) / 4, where n = number of lights and the result X is rounded to the next higher number.

Property	Value
Max. System power:	96 W
Rated luminous flux according to IEC 62722-2-1:	11641 lm
Suitable for number of lamps:	2
Length:	1548 mm
Width:	312 mm
Height/depth:	85 mm
Protection rating (IP):	IP40
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED replaceable
Socket:	other
With operating device:	yes
Material of Cover:	Plastic transparent
Without dimming function:	no
Installation width:	292 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Installation length:	1529 mm
Grid design:	matt
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Energy efficiency class of the included replaceable lamp:	D
Suitable for lamp power:	42 W
Luminaire luminous efficacy:	121 lm/W

Characteristics

HABESHL-L 280/1240-840 SM-DA

Manufacturer

HAN0860595

GTIN4029299461541

Execution of the gridFrosted

Rated luminous flux according to IEC 62722-2-111641lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width312 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width292 mm

Installation length1529 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power42W

Suitable for number of lamps2

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Height/Depth85 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy121lm/W

LampsLED replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1548 mm

Max. system performance96W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK08

IP protection)IP40

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
