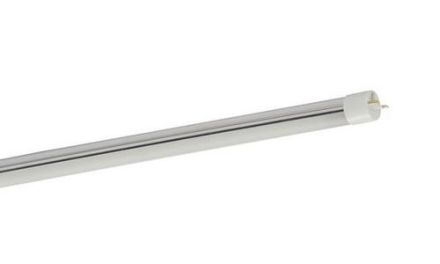

Ridi Leuchten 1206603LD R TUBE G2 145 830M0450 LD LED tube

In stock
SKU: 1038653
€98.01
Into a basketIn the basketGo

Overview

RIDI-TUBE LED light source, color rendering Ra >= 80, color tolerance < 3 Step Mac Adam (initial). LED modules designed as linear boards. Mid-power LEDs for even illumination and maximum efficiency. Base profile made of extruded aluminum for optimal thermal management. Linear board continuously interlocked with base profile over the entire length. Cover made of satin PMMA for efficient light extraction, socket made of robust white PC. Operation with an external LED driver (built into the light), constant current, protective extra-low voltage less than 60 volts (SELV-compliant). RIDI-TUBE packaged. Length 1450 mm, power consumption 27 watts. Color rendering Ra > 80. Light color 3000 (...830...), 4000 (..840...) or 6500 Kelvin (...865...). Assembly: Factory assembly of the electrical components in almost all lights from the RIDI range. Tool-free on-site installation of the RIDI-TUBE similar to fluorescent lamps.

Property Value
Lamp power: 27 W
Color temperature: 3000 K
Socket: other
Lamp shape: Tube, double-ended
Length: 1449 mm
Color rendering index CRI: 80-89
Diameter: 20 mm
Weighted energy consumption in 1,000 hours: 30 kWh
Voltage type: DC
Color: white
Light color according to EN 12464-1: warm white <3300 K
Protection class (IP): IP20
With remote control: no
Glass/cover design: frosted
Nominal current: 650 mA
Filament lamp: no
Color consistency (McAdam ellipse): SDCM3
Remote control possible: no

Characteristics

HABR TUBE G2 145 830M0450 LD
ManufacturerRidi Leuchten
HAN1206603LD
GTIN4029299567526
Glass/cover designMatte
Diameter20 mm
ColorWhite
Color consistency (McAdam ellipse)SDCM3
Color temperature3000K
Color rendering index CRI80-89
Remote control possibleNo
Filament lampNo
Weighted energy consumption in 1,000 hours30kWh
Lamp shapeTube, double-ended
Lamp power27W
Length1449 mm
With remoteNo
Rated current650mA
IP protection)IP20
BaseOther
Voltage typeDC
