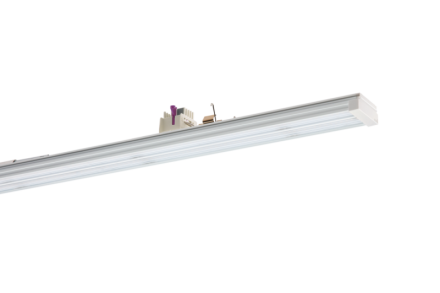

Ridi Leuchten 1561206 VLPGFP1002-7DAWS840B1200 LED device carrier

LED device carrier made of aluminum profile, extruded, white powder-coated. RIDI LED linear modules, equipped with mid-power LEDs with increased resistance to harmful gases. The circuit boards are pressed onto the aluminum profile over their entire surface for optimal heat dissipation. Soldering points of the LED modules tested according to the strictest quality standards with regard to the formation of cavities and stability during vibration and twisting. No thermal coupling between LED modules and converter. Linear optics with wide beam light distribution made of clear, UV-resistant PMMA, flush-mounted in the device carrier. Oil-resistant seals, end caps made of thermoplastic, for protection class up to IP54. Width of the device carrier identical to the mounting rail. Spring steel clamp for fastening the device carrier in the VLTM mounting rail. Together with the VLTM mounting rail for the production of modular and variable light strips with protection class IP20 and IP54. The device carriers can be mounted anywhere in the mounting rail. Electrical adapter for flexible tapping of the power supply in the mounting rail with automatically contacted protective conductor. Phase selection via sliding contact. Color and optical coding for easy installation. Mechanical coding to prevent incorrect installation (twisting protection). In the case of variably placed device carriers and the combination of operating device and mounting rail connector, installation is only possible with the mounting rail connector VLTV ...-600.
