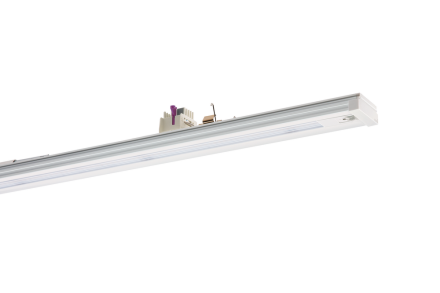

Ridi Leuchten 1561300 VLGFP-SN1501-7DAWS840B0800-MR LED device carrier

LED device carrier made of extruded aluminum profile, white (...WS-...) powder-coated. RIDI LED linear modules equipped with mid-power LEDs for maximum efficiency. The circuit boards are pressed onto the aluminum profile over their entire surface for optimal heat dissipation. Soldering points of the LED modules tested according to the strictest quality standards with regard to the formation of cavities and stability during vibration and twisting. No thermal coupling between LED modules and converter. Linear optics with wide beam light distribution made of clear, UV-resistant PMMA, flush-mounted in the device carrier. Luminaire IP20/40. Width of the device carrier identical to the mounting rail. Spring steel clamp for fastening the device carrier in the VLTM mounting rail. Together with the VLTM mounting rail for the production of modular and variable light strips with protection class IP20 and IP40. The device carriers can be mounted anywhere in the mounting rail. Electrical adapter for flexible tapping of the power supply in the mounting rail with automatically contacted protective conductor. Phase selection via sliding contact. Color and optical coding for easy installation. Mechanical coding to avoid incorrect installation (twisting protection). If the device carriers are variably placed and the operating device meets the mounting rail connector, installation is only possible with the VLTV ...-600 mounting rail connector. VLGFP-SN...MR (master) and VLGFP...DA... (slave), color coding purple, as a master-slave combination for installation in VLTM-7 or VLTM-11. Motion detector controls the controller in the device carrier. Factory setting: After the last movement detected, the light level remains at 100% for the run-on time of 5 minutes. Then dimming to 10%. After a further 30 seconds, the light switches off. A master device carrier can be supplemented with a maximum of 3 DALI device carriers. Individual settings possible via app. Maximum installation height 4 m, detection range 6 m diameter. When the control signal is continued
