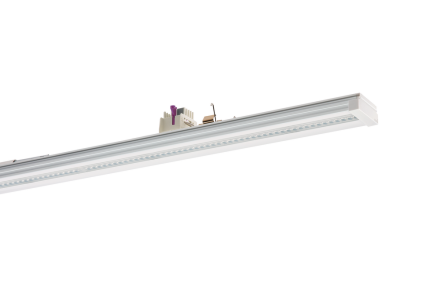

Ridi Leuchten 1561395 VLGFL1991-7DAWS865E1100 LED device carrier

LED device carrier, coated in white (...WS-...), silver (...SI-...) or black (...SW-...). RIDI LED linear modules, resistant to harmful gases, equipped with mid-power LEDs for maximum efficiency. The circuit boards are pressed over the entire surface onto the device carrier profile for optimum heat dissipation. Soldering points of the LED modules tested according to the strictest quality standards with regard to the formation of cavities and stability during vibration and twisting. No thermal coupling between LED modules and converter. Lens optics with wide beam light distribution made of clear, UV-resistant PMMA, flush-mounted in the device carrier. Oil-resistant end caps made of thermoplastic, with seal for protection class up to IP54. Width of the device carrier identical to the mounting rail. Spring steel clamp for fastening the device carrier in the VLTM mounting rail. Together with the VLTM mounting rail for the production of modular and variable light strips with protection class IP20 and IP54. The device carriers can be mounted anywhere on the mounting rail. Electrical adapter for flexible tapping of the power supply in the mounting rail with automatically contacted protective conductor. Phase selection via sliding contact. Color and optical coding for easy installation. Mechanical coding to prevent incorrect installation (twisting protection). If the device carriers are placed variably and the operating device meets the mounting rail connector, installation is only possible with the VLTV ...-600 mounting rail connector. Material device carrier: profiled from galvanized, coated sheet steel
