Ridi Leuchten 332049 REYE-2 DAWS930RA1100 LED recessed ceiling spotlight

Ridi Leuchten 332049 REYE-2 DAWS930RA1100 LED recessed ceiling spotlight

In stock

SKU: 1038426

Price on request

€636.34

€0

Overview

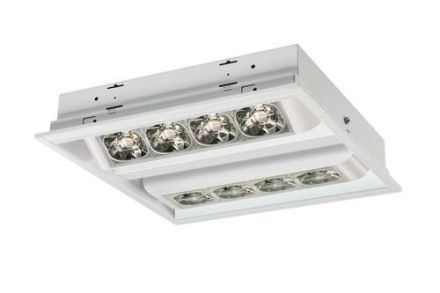

LED spotlight in a unique design for ceiling installation. Luminaire housing made of sheet steel, spotlight housing made of die-cast aluminum, powder-coated white (similar to RAL9016) or black (similar to RAL9005). Light unit attached to the luminaire housing via a tilting joint, can be swiveled continuously by 80° for flexible use. Device carrier plate made of galvanized sheet steel, carries the operating device, the mains connection terminal with cable strain relief and the connection cable to the LED module. Cover made of thermally resistant polycarbonate clipped on. Light unit equipped with 4 LED COB modules for high luminous flux. The high-quality optics in the form of TIR lenses, specially developed for shelf lighting, ensure efficient light control. Protection type IP20, protection class I. Spotlight with two identical, opposing light units. Installation: Installation in sawn ceiling openings of various ceiling systems with the appropriate fastening set, or lay-in installation in ceiling systems with visible support rails and inserted ceiling panels. No additional fastening accessories are required for lay-in installation.

n on

Property	Value
Max. System power:	102 W
Rated luminous flux according to IEC 62722-2-1:	10410 lm
Housing color:	white
Housing material:	steel
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	299 mm
Width:	299 mm
Height/depth:	77 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	48 W
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	no
Light distribution:	asymmetrical
Operating device:	LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark':	no
Suitable for number of bulbs:	2
Installation width:	285 mm
Installation length:	285 mm
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light emission:	direct
Luminous efficacy:	102 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABREYE-2 DAWS930RA1100

Manufacturer

HAN332049

GTIN4029299538359

Rated luminous flux according to IEC 62722-2-110410lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width299 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width285 mm

Installation length285 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000K

Color rendering index CRI90-100

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power48W

Suitable for number of lamps2

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth77 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy102lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionAsymmetrical

Length299 mm

Max. system performance102W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilitySwiveling

Housing materialSteel
