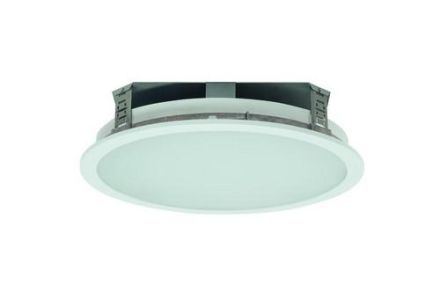

Ridi Leuchten 336776 EDLR 410/6000-8TW OS-DALI LED recessed ceiling spotlight

In stock
SKU: 1037547
€529.60
Into a basketIn the basketGo

Overview

Recessed downlight, diameter 410 mm. Sturdy recessed ring made of die-cast metal with tool-free fastening clips for ceiling installation. Integrated holding device for tool-free attachment of the decorative ring or accessories. Decorative ring made of white polycarbonate with bayonet lock. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the luminaire housing. Protection class IP44 on the room side, IP20 on the ceiling side. Opal, satin-finished cover panel made of UV-resistant PMMA. Homogeneous illumination of the panel with no visible LED points. Installation: Installation in sawn ceiling openings. Fastening clips for clamp thicknesses from 0 to 25 mm.

Property Value
Max. System power: 41 W
Rated luminous flux according to IEC 62722-2-1: 4910 lm
Housing color: white
Housing material: steel
Protection class (IP): IP20
Outer diameter: 410 mm
Light source: LED not replaceable
Protection class: I
With light source: yes
Installation height/depth: 90 mm
With operating device: yes
Suitable for recessed mounting: yes
Height/depth: 82 mm
With motion detector: no
Color temperature: 2700 to 6500 K
Nominal voltage: 220 to 240 V
Suitable for lamp power: 31 W
Color rendering index CRI: 80-89
Suitable for ceiling mounting: no
Light distribution: symmetrical
Operating device: LED operating device current-controlled
Luminaire with limited surface temperature 'D-mark': no
Suitable for number of bulbs: 1
Voltage type: AC/DC
Light color: white
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: no
Suitable for pedestal/floor mounting: no
Suitable for Traverse mounting: no
With light sensor: no
Suitable for surface mounting: no
Suitable for cable system: no
Brushed surface: no
Dimming depending on operating device: yes
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming Mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light emission: direct
Luminaire luminous efficacy: 119 lm/W
Suitable for computer workstations in accordance with EN 12464-1: no
Color consistency (McAdam ellipse): SDCM3

Characteristics

HABEDLR 410/6000-8TW OS-DALI
ManufacturerRidi Leuchten
HAN336776
GTIN4029299544381
Outer diameter410 mm
Rated luminous flux according to IEC 62722-2-14910lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation height/depth90 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature2700 to 6500 K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for lamp power31 W
Suitable for number of lamps1
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorWhite
Height/Depth82 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy119lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Max. system performance41 W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Brushed surfaceNo
Without dimming functionNo
IP protection)IP20
Protection classI
Voltage typeAC/DC
AdjustabilityNot adjustable
Housing materialSteel
Ridi Leuchten 336776 EDLR 410/6000-8TW OS-DALI LED recessed ceiling spotlight
