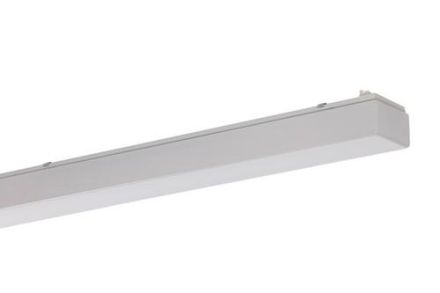

Ridi Leuchten 528286 LFN 0607NDWS840O0300 LED moisture-proof luminaire

Ridi Leuchten 528286 LFN 0607NDWS840O0300 LED moisture-proof luminaire

In stock

SKU: 1037971

Price on request

€150.39

€0

Overview

Single light for ceiling or wall mounting. Protection class IP50. Light housing made of torsion-resistant profiled sheet steel, white resin-coated, color similar to RAL9016. LED modules designed as linear surface boards. Mid-power LEDs for even illumination and maximum efficiency. Attached plastic end pieces made of UV-stabilized white PC. 2-component, seamless, all-round foamed seal between the cover and light housing, depending on the protection class. Sealing disc to seal the fastening opening between the fastening surface and light housing. Fastening lugs 9mm high for guiding power cables between the light and the fastening surface. Cover fastening without tools using metal twist locks with plastic seal in the light housing. Silicone-free design. Plastic cover blown from opal, UV-resistant PMMA. Installation: Direct ceiling or wall mounting without additional accessories. Band mounting with fixed luminaire spacing with LFN-LVDM accessory. Can be mounted on support rails using appropriate luminaire fasteners.

Property	Value
Max. System power:	26 W
Rated luminous flux according to IEC 62722-2-1:	3080 lm
Suitable for number of lamps:	1
Length:	605 mm
Width:	90 mm
Height/depth:	70 mm
Protection rating (IP):	IP50
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	Opal plastic
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent from the operating device:	yes
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	118 lm/W

Characteristics

HABLFN0607NDWS840O0300

Manufacturer

HAN528286

GTIN4029299555837

Rated luminous flux according to IEC 62722-2-13080lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width90 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth70 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy118lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length605 mm

Max. system performance26W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP50

Protection classI

Voltage typeAC/DC

Cover materialPlastic opal

Housing materialSteel
