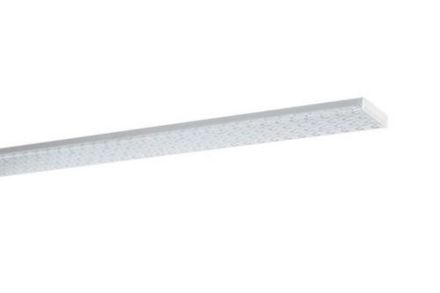

Ridi Leuchten 627819 LENSES-AD1000NDWS830B0350 LED ceiling light

Ridi Leuchten 627819 LENSES-AD1000NDWS830B0350 LED ceiling light

In stock

SKU: 1039032

Price on request

€283.97

€0

Overview

Modern, flat LED surface-mounted luminaire with square, 4-row lens optics arrays with an optically harmonized surface structure for efficient light output. High-quality, rectangular construction made of extruded aluminum profile, powder-coated. Total height 20 mm in the edge area, 35 mm in the middle area. Installation height in the ceiling attachment area 58 mm. Midpower LED modules for maximum luminaire efficiency. Protection class I, protection type IP20. Direct light distribution. Light control directly via optics array. Installation: Direct ceiling installation by pre-assembling the ceiling plate, then hanging in and securing the luminaire body.

Property	Value
Max. System power:	22 W
Rated luminous flux according to IEC 62722-2-1:	3510 lm
Suitable for number of lamps:	1
Length:	1021 mm
Width:	113 mm
Height/depth:	58 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	yes
Luminaire luminous efficacy:	159 lm/W

Characteristics

HABLENSES-AD1000NDWS830B0350

Manufacturer

HAN627819

GTIN4029299566918

Rated luminous flux according to IEC 62722-2-13510lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width113 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth58 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy159lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1021 mm

Max. system performance22W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
