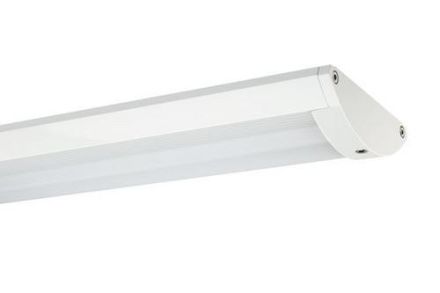

Ridi Leuchten 632206 SURVIVOR069DAWS840K0300 LED ceiling light

Ridi Leuchten 632206 SURVIVOR069DAWS840K0300 LED ceiling light

In stock

SKU: 1038082

Price on request

€981.20

€0

Overview

LED surface-mounted industrial luminaire, protection class IP65 for ceiling, wall or corner mounting, direct beam. Sturdy luminaire housing made of extruded aluminum profile, color white, (similar to RAL9016), powder-coated. End caps made of die-cast aluminum. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the luminaire housing. Clear cover made of polycarbonate with wide-beam, symmetrical prism profile, vandal-proof. Impact resistance IK11+ 100 J. Installation: ceiling and wall mounting without additional accessories. Corner mounting with corresponding accessory set (see accessories). Cable entry at the front.

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	2890 lm
Suitable for number of lamps:	2
Length:	690 mm
Width:	240 mm
Height/depth:	73 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	> IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	Plastic transparent
Without Dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Luminaire luminous efficacy:	152 lm/W

Characteristics

HABSURVIVOR069DAWS840K0300

Manufacturer

HAN632206

GTIN4029299539455

Rated luminous flux according to IEC 62722-2-12890lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width240 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps2

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth73 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy152lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length690 mm

Max. system performance19 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

IP protection)IP65

Protection classI

Voltage typeAC/DC

Cover materialPlastic transparent

Housing materialAluminum
