Ridi Leuchten 657744 ABRFB1180NDWS840MRM0400-RF LED ceiling light

Ridi Leuchten 657744 ABRFB1180NDWS840MRM0400-RF LED ceiling light

In stock

SKU: 1038380

Price on request

€315.56

€0

Overview

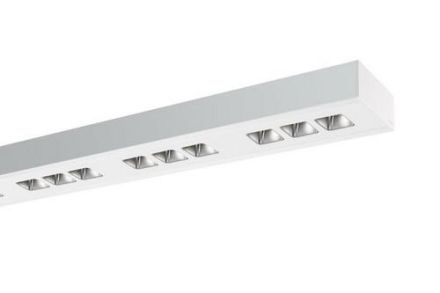

LED surface-mounted luminaire for ceiling or pendant mounting, strip capable, direct beam. Sturdy luminaire housing made of sheet steel with a particularly scratch-resistant powder coating. LED modules designed as a surface circuit board. Mid-power LEDs for even illumination and maximum efficiency. LED driver built into the luminaire. Welded functional end pieces with patented quick connection for strip mounting. Protection class IP20, protection class I. LED modules with attached, frosted reflectors for deep, wide-beam light distribution. An integrated, flexible resistor (ResFlex) can be used to set 10 different resistors and thus 10 different luminous fluxes for the luminaire (factory setting: maximum luminous flux). Installation: individual or strip mounting. Ceiling mounting with the included accessories or pendant mounting with the appropriate fastening sets (see accessories).

Property	Value
Max. System power:	33 W
Rated luminous flux according to IEC 62722-2-1:	4100 lm
Suitable for number of lamps:	1
Length:	1180 mm
Width:	131 mm
Height/depth:	59 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	4000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	yes
Suitable for pendulum suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	yes
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	yes
Luminaire luminous efficacy:	124 lm/W

Characteristics

HABABRFB1180NDWS840MRM0400-RF

Manufacturer

HAN657744

GTIN4029299557053

Rated luminous flux according to IEC 62722-2-14100lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width131 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Height/Depth59 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy124lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1180 mm

Max. system performance33W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
