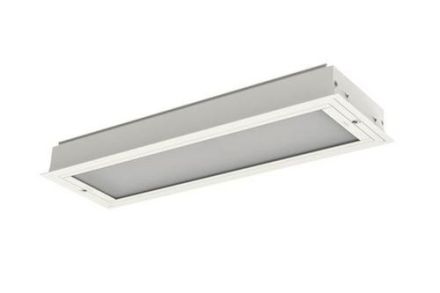

Ridi Leuchten 837963 M200-E069 DAWS830ESGS0225 LED recessed light

Ridi Leuchten 837963 M200-E069 DAWS830ESGS0225 LED recessed light

In stock

SKU: 1038590

Price on request

€986.68

€0

Overview

LED recessed light for ceiling installation. Sturdy light housing made of extruded aluminum profile, color white (RAL9016), powder-coated. End caps made of die-cast aluminum. LED modules designed as surface boards. Mid-power LEDs for uniform illumination and maximum efficiency. LED driver built into the light housing. Light suitable for through-wiring. Protection class IP65, protection class II. Cover ESG pane, satin-finished, wide beam. Impact resistance IK08. Installation: recessed installation by the customer. Seal included depending on the protection class.

Property	Value
Max. System power:	18 W
Rated luminous flux according to IEC 62722-2-1:	2170 lm
Suitable for number of lamps:	2
Length:	720 mm
Width:	224 mm
Height/depth:	79 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	no
Voltage type:	AC/DC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
With operating device:	yes
Cover material:	Plastic, matt/satin
Without dimming function:	no
Installation width:	210 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed installation:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	710 mm
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	120 lm/W

Characteristics

HABM200-E069 DAWS830ESGS0225

Manufacturer

HAN837963

GTIN4029299557671

Rated luminous flux according to IEC 62722-2-12170lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width224 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width210 mm

Installation length710 mm

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for number of lamps2

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth79 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length720 mm

Max. system performance18W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage typeAC/DC

Cover materialPlastic matt/satin

Housing materialAluminum
