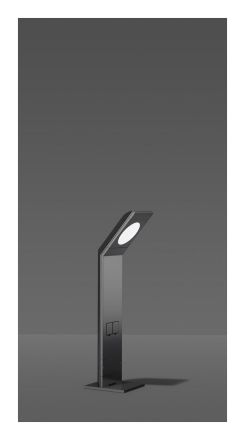

RZB 611862.0031.1 Slopia TOP LED 22W 4000K with 2x socket LED bollard light

RZB 611862.0031.1 Slopia TOP LED 22W 4000K with 2x socket LED bollard light

In stock

SKU: 527463

Price on request

€949.73

€0

Overview

Housing made of corrosion-resistant die-cast aluminum and extruded profiles for outdoor use, powder-coated. Luminaire-integrated refractor optics with one-sided, asymmetrical light distribution. With Gore Protective Vents diaphragm valve as standard to reduce condensation. Optionally with 2 Schuko sockets (IP 44). Standpipe 220 mm x 98 mm extruded aluminum profile, powder-coated. Front panels and cover made of die-cast aluminum, powder-coated. Luminaire head tilted 40° vertically. Cover made of opal safety glass (ESG). Light source (mains voltage LED module) included in delivery. With diaphragm valve as standard to prevent condensation. Mains connection to junction box in the standpipe. Mains connection maximum 2x 5x 1.5 mm. Suitable for cable diameters maximum d 13 mm. With two protective contact sockets including hinged cover (IP44). Base plate 270 mm x 240 mm. Four mounting holes d 9 mm. Hole spacing 230 mm x 200 mm. Energy efficiency class A+

Property	Value
Cover material:	opal glass
Housing color:	anthracite
Impact resistance:	IK08
With light source:	yes
Protection class:	I
Light source:	LED not replaceable
Nominal voltage:	220 to 240 V
Suitable for number of bulbs:	1
Width:	240 mm
Socket:	without
Material of the housing:	Aluminium
Protection class (IP):	IP44
Type of luminaire:	Bollard light
Operating device:	not required
Rated luminous flux according to IEC 62722-2-1:	820 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Light color:	white
With operating device:	no
With motion detector:	no
With light sensor:	no
Voltage type:	AC
With base plate:	yes
Surface:	powder-coated
LED nominal current at constant current:	71 to 77 mA
Light distributor:	without
Protection class (NEMA):	other
Suitable for lamp power:	17 W
Max. System power:	17 W
Height/depth:	1000 mm
Length:	310 mm
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

With base plateYes

HABSlopia TOP LED 22W 4000K with 2x socket

Manufacturer

HAN611862.0031.1

GTIN4051859042921

Connection typePlug-in terminal

Type of lampBollard light

Type of wiringSuitable for through wiring

Rated luminous flux according to IEC 62722-2-1820lm

Operating deviceNot required

Width240 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power17 W

Suitable for number of lamps1

Housing colorAnthracite

Height/Depth1000 mm

LED nominal current at constant current71 to 77 mA

Conductor cross-section2.50 mm²

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Length310 mm

Max. system performance17 W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Number of poles3

Impact resistanceIK08

IP protection)IP44

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass opal

Housing materialAluminum
