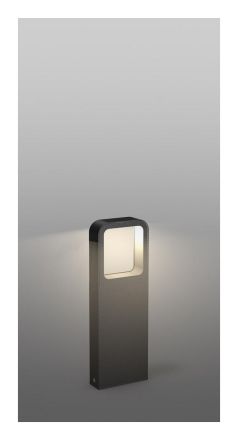

RZB 611975.0031 Home 202 anthracite 9W 290lm 3000K LED bollard light LB19

RZB 611975.0031 Home 202 anthracite 9W 290lm 3000K LED bollard light LB19

In stock

SKU: 529558

Price on request

€120

€0

Overview

Orientation parallel or perpendicular to the path. Bollard light for base mounting. Housing made of powder-coated die-cast aluminum. Diffuser made of opal plastic (polycarbonate). Control gear built in. Light source (LED) included in delivery. Energy efficiency class A+

Property	Value
Cover material:	opal plastic
Housing color:	anthracite
Impact resistance:	IK06
With light source:	yes
Protection class:	I
Light source:	LED not replaceable
Nominal voltage:	200 to 240 V
Suitable for number of bulbs:	1
Width:	120 mm
Socket:	without
Material of the housing:	Aluminium
Protection class (IP):	IP54
Type of luminaire:	Pedestal luminaire
Operating device:	LED operating device, current-controlled
Rated luminous flux according to IEC 62722-2-1:	290 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
With operating device:	yes
With motion detector:	no
With light sensor:	no
Voltage type:	AC
With base plate:	no
Surface:	powder-coated
LED nominal current at constant current:	38 to 45 mA
Light distributor:	without
Rated service life L70/B50 at 25 °C:	25000 h
Protection class (NEMA):	other
Suitable for lamp wattage:	9 W
Max. System power:	9 W
Height/depth:	350 mm
Length:	40 mm
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	1.50 mm²
Connection type:	Screw terminal

Characteristics

With base plateNo

HABHome 202 anthracite 9W 290lm 3000K

Manufacturer

HAN611975.0031

GTIN4051859151654

Connection typeScrew terminal

Type of lampPedestal light

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C25000 hours

Rated luminous flux according to IEC 62722-2-1290lm

Operating deviceLED control gear current controlled

Width120 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power9W

Suitable for number of lamps1

Housing colorAnthracite

Height/Depth350 mm

LED nominal current at constant current38 to 45 mA

Conductor cross-section1.50 mm²

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Length40 mm

Max. system performance9W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage200 to 240 V

SurfacePowder coated

Number of poles3

Impact resistanceIK06

IP protection)IP54

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
