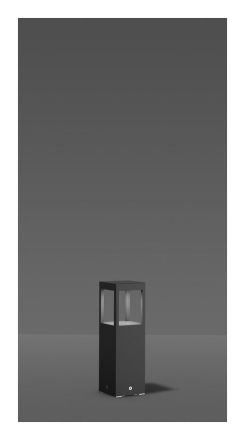

RZB 611989.0031 Bocaro 20W 3000K 156x156x500 LED bollard light

RZB 611989.0031 Bocaro 20W 3000K 156x156x500 LED bollard light

In stock

SKU: 530967

Price on request

€639.08

€0

Overview

Made in Germany. Two in one: interesting light sculpture and efficient LED light source. Six sizes to choose from: from the compact short bollard to the slim standard bollard. Extremely stable design thanks to stainless steel base and integrated columns in the profile cross-section. Replaceable mains voltage LED. Seawater-resistant coating. Anti-reflective single-pane safety glass (ESG). A sophisticated ventilation system prevents condensation. Decorative bollard lights with a square cross-section made of corrosion-resistant aluminum, powder-coated. With fully enclosed mounting base made of stainless steel. LED protective cover made of clear glass. Light source (mains voltage LED module) included in delivery. Junction box on the base for connecting max. 2x 3x 2.5 mm as through-wiring. Energy efficiency class A+

Property	Value
Cover material:	Transparent glass
Housing color:	anthracite
Impact resistance:	IK06
With light source:	yes
Protection class:	I
Light source:	LED not replaceable
Nominal voltage:	220 to 240 V
Suitable for number of bulbs:	1
Width:	156 mm
Socket:	without
Material of the housing:	Aluminium
Protection class (IP):	IP66
Type of luminaire:	Pedestal luminaire
Operating device:	LED operating device, current-controlled
Rated luminous flux according to IEC 62722-2-1:	1600 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
With operating device:	yes
With motion detector:	no
With light sensor:	no
Voltage type:	AC
With base plate:	no
Surface:	powder-coated
LED nominal current at constant current:	83 to 91 mA
Light distributor:	without
Protection class (NEMA):	other
Suitable for lamp power:	20 W
Max. System power:	20 W
Power factor:	0.99
Height/depth:	500 mm
Length:	156 mm
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

With base plateNo

HABBocaro 20W 3000K 156x156x500

Manufacturer

HAN611989.0031

GTIN4051859158134

Connection typePlug-in terminal

Type of lampPedestal light

Type of wiringSuitable for through wiring

Rated luminous flux according to IEC 62722-2-11600lm

Operating deviceLED control gear current controlled

Width156 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power20W

Suitable for number of lamps1

Housing colorAnthracite

Height/Depth500 mm

LED nominal current at constant current83 to 91 mA

Power factor0.99

Conductor cross-section2.50 mm²

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Length156 mm

Max. system performance20W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Number of poles3

Impact resistanceIK06

IP protection)IP66

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum
