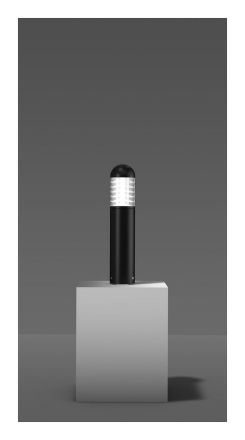

RZB 611994.0031.1 Mega 10W 4000K D115 H550 LED bollard light

RZB 611994.0031.1 Mega 10W 4000K D115 H550 LED bollard light

In stock

SKU: 530923

Price on request

€411.91

€0

Overview

The standpipe made of powder-coated, corrosion-free aluminum profile is held to the ground by a stable stainless steel fastening. This innovative assembly concept guarantees a long service life. The innovative housing concept protects the light source and operating devices safely from all weather influences. Seawater-resistant coating. The form-fitting cover made of corrosion-resistant die-cast aluminum meets high aesthetic and functional requirements. A sophisticated ventilation system prevents condensation. The high-quality LED optics provide balanced brightness and minimize energy consumption. Bollard standpipe 115 mm made of corrosion-resistant aluminum for outdoor use, powder-coated. With fully enclosed stainless steel mounting base. Corrosion-free luminaire insert made of dual compound injection molding with integrated sealing elastomer. Cover made of powder-coated die-cast aluminum. With clear glass cylinder and translucent anti-glare slats. With diaphragm valve as standard to prevent condensation. Junction box on the base for connection of max. 2x 3x 2.5 mm as through wiring. Energy efficiency class A++

Property	Value
Cover material:	Transparent glass
Housing color:	anthracite
Impact resistance:	IK05
With light source:	yes
Protection class:	I
Light source:	LED not replaceable
Nominal voltage:	220 to 240 V
Suitable for number of bulbs:	1
Diameter:	115 mm
Socket:	without
Material of the housing:	Aluminium
Protection class (IP):	IP65
Type of luminaire:	Pedestal luminaire
Operating device:	LED operating device, current-controlled
Rated luminous flux according to IEC 62722-2-1:	920 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Light color:	white
With operating device:	yes
With motion detector:	no
With light sensor:	no
Voltage type:	AC/DC
With base plate:	no
Surface:	powder-coated
LED nominal current at constant current:	42 to 45 mA
Light distributor:	other
Protection class (NEMA):	other
Suitable for lamp power:	10 W
Max. System power:	10 W
Power factor:	0.54
Height/depth:	550 mm
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

With base plateNo

HAB10W 4000K D115 H550

Manufacturer

HAN611994.0031.1

GTIN4051859170426

Connection typePlug-in terminal

Type of lampPedestal light

Type of wiringSuitable for through wiring

Rated luminous flux according to IEC 62722-2-1920lm

Operating deviceLED control gear current controlled

Diameter115 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power10W

Suitable for number of lamps1

Housing colorAnthracite

Height/Depth550 mm

LED nominal current at constant current42 to 45 mA

Power factor0.54

Conductor cross-section2.50 mm²

LampsLED not replaceable

Light colorWhite

Light distributorOther

Max. system performance10W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Number of poles3

Impact resistanceIK05

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass transparent

Housing materialAluminum
