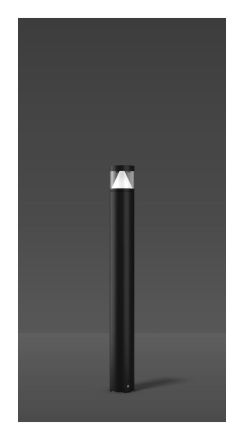

RZB 612163.0031.1 Mega Cone 10W 630lm 840 anthracite LED bollard light

RZB 612163.0031.1 Mega Cone 10W 630lm 840 anthracite LED bollard light

In stock

SKU: 722564

Price on request

€443.38

€0

Overview

Decorative cylindrical bollard light with innovative housing concept and high-quality LED optics. Bollard standpipe ø 115 mm made of corrosion-resistant, powder-coated aluminum with fully enclosed stainless steel mounting base. Corrosion-free lamp insert made of dual compound injection molding with integrated sealing elastomer. With diaphragm valve as standard to prevent condensation. Seawater-resistant coating. Cover made of powder-coated die-cast aluminum with clear glass cylinder and cone reflector. The robust stainless steel mounting base ensures a secure stand. Slotted holes in the base for subsequent, easy alignment of the lamp. Control gear integrated. Connection box on the base max. 2 x 3 x 2.5 mm² for through wiring.

Property	Value
Cover material:	Transparent glass
Housing color:	anthracite
Impact resistance:	IK05
With light source:	yes
Protection class:	I
Light source:	LED not replaceable
Nominal voltage:	220 to 240 V
Suitable for number of lamps:	1
Diameter:	115 mm
Socket:	without
Material of the housing:	Aluminium
Protection class (IP):	IP65
Type of light:	Bollard light
Operating device:	LED operating device, current-controlled
Rated luminous flux according to IEC 62722-2-1:	800 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Light color:	white
With control gear:	yes
With motion detector:	no
With light sensor:	no
Voltage type:	AC
With base plate:	no
Surface:	powder-coated
LED nominal current at constant current:	42 to 45 mA
Light distributor:	reflector
Protection class (NEMA):	other
Suitable for lamp power:	10 W
Max. System power:	10 W
Power factor:	0.54
Height/depth:	1035 mm
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

With base plateNo

HABMega Cone 10W 630lm 840 anthracite

Manufacturer

HAN612163.0031.1

GTIN4051859346661

Connection typePlug-in terminal

Type of lampBollard light

Type of wiringSuitable for through wiring

Rated luminous flux according to IEC 62722-2-1800lm

Operating deviceLED control gear current controlled

Diameter115 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power10W

Suitable for number of lamps1

Housing colorAnthracite

Height/Depth1035 mm

LED nominal current at constant current42 to 45 mA

Power factor0.54

Conductor cross-section2.50 mm²

LampsLED not replaceable

Light colorWhite

Light distributorReflector

Max. system performance10W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Number of poles3

Impact resistanceIK05

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialGlass transparent

Housing materialAluminum
