RZB 901721.002.76 Sonis 41W-3000K/4000K LED ceiling light

RZB 901721.002.76 Sonis 41W-3000K/4000K LED ceiling light

In stock

SKU: 897541

Price on request

€450.36

€0

Overview

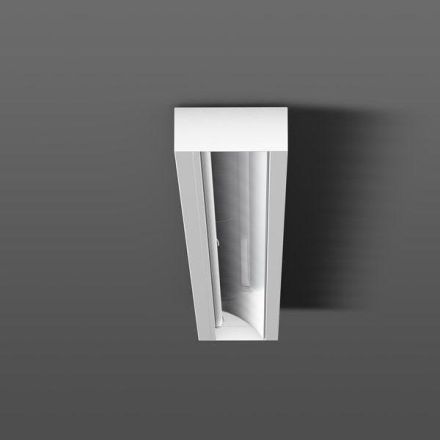

LED surface-mounted luminaire. Powder-coated metal housing. Parabolic reflector for asymmetrical light distribution. Reflector material MIRO® aluminum, glossy. MultiColour: color temperature adjustable to 3000 K, 4000 K (factory setting) with switching element. Suitable for ceiling mounting. Integrated operating device. Ideal for uniform illumination of school boards in accordance with DIN EN 12464-1.

Property	Value
Max. System power:	41 W
Suitable for number of bulbs:	5
Length:	1484 mm
Width:	155 mm
Height/depth:	62 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Color temperature:	3000 to 4000 K
Impact resistance:	IK04
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC/DC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Light distributor:	Reflector
Without dimming function:	no
Light emission:	direct
Light distribution:	asymmetric
With light sensor:	no
Operating device:	LED operating device current-controlled
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip lighting configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Cover of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
GPRS dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	41 W
Power factor:	0.89
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²

Characteristics

HABSony 41W-3000K/4000K

Manufacturer

HAN901721.002.76

GTIN4051859758860

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width155 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000 to 4000 K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power41 W

Suitable for number of lamps5

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth62 mm

Power factor0.89

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect

Light distributorReflector

Light distributionAsymmetrical

Length1484 mm

Max. system performance41 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

Impact resistanceIK04

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC
