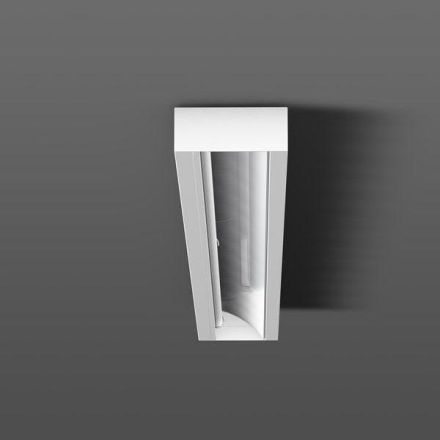

LED surface-mounted luminaire. Powder-coated metal housing. Parabolic reflector for asymmetrical light distribution. Reflector material MIRO® aluminum, glossy. MultiColour: color temperature adjustable to 3000 K, 4000 K (factory setting) with switching element. Suitable for ceiling mounting. Integrated operating device. Ideal for uniform illumination of school boards in accordance with DIN EN 12464-1.
| Property | Value |
| Max. System power: | 41 W |
| Suitable for number of bulbs: | 5 |
| Length: | 1484 mm |
| Width: | 155 mm |
| Height/depth: | 62 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Color temperature: | 3000 to 4000 K |
| Impact resistance: | IK04 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | no |
| Voltage type: | AC/DC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Socket: | other |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Light distributor: | Reflector |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | asymmetric |
| With light sensor: | no |
| Operating device: | LED operating device current-controlled |
| Suitable for Recessed installation: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| 0-10 V dimming: | no |
| GPRS dimming: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 41 W |
| Power factor: | 0.96 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
