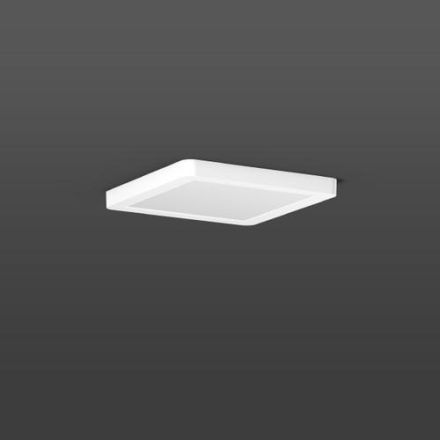

RZB 901722.002 Trixy/E 9/12/15W-3000/4000K 235x235 LED ceiling light

RZB 901722.002 Trixy/E 9/12/15W-3000/4000K 235x235 LED ceiling light

In stock

SKU: 897047

Price on request

€37.08

€0

Overview

Super-flat square downlight suitable for recessed and surface mounting. Housing made of UV-resistant plastic (polycarbonate). Perfect thermal management using an aluminum heat sink. Clear plastic diffuser with opal reflector film. Lateral light coupling (RZB SIDELITE® technology) for above-average homogeneous luminance distribution. MultiColour: color temperature 3000 K or 4000 K can be individually adjusted using the rear switching element. Factory-set to 4000 K. MultiLumen: luminaire luminous flux can be adjusted in 3 levels. Factory-set to the highest luminaire luminous flux. MultiCutOut: various ceiling cutouts can be individually adjusted using the adjustable spring fastening. Suitable for ceiling cutouts from 65 to 205 mm. Suitable for recessed ceiling mounting and for surface mounting on the ceiling and wall. Suitable for through-wiring. Operating device integrated.

Property	Value
Max. System power:	15 W
Housing color:	white
Protection class (IP):	IP20
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	82 mm
With Operating device:	yes
Suitable for built-in installation:	yes
Length:	235 mm
Width:	235 mm
Height/depth:	22 mm
With motion detector:	no
Color temperature:	3000 to 4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	9 to 15 W
Beam angle:	extremely wide beam >80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current-controlled
Impact resistance:	IK02
Luminaire with limited Surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Cover material:	opal plastic
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	other
Brushed surface:	no
LED nominal current at constant current:	38 to 41 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	40000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Type of wiring:	suitable for through wiring
Power factor:	0.90
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM4

Characteristics

HABTrixy/E 9/12/15W-3000/4000K 235x235

Manufacturer

HAN901722.002

GTIN4051859768913

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Rated lifetime L70/B50 at 25 °C40000 hours

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width235 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth82 mm

Color consistency (McAdam ellipse)SDCM4

Color temperature3000 to 4000 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for lamp power9 to 15 W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth22 mm

LED nominal current at constant current38 to 41 mA

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect

Light distributorReflector

Light distributionSymmetrical

Length235 mm

Max. system performance15W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfaceOther

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorOther

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal
