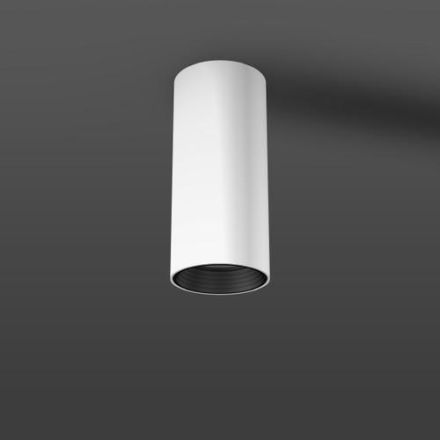

RZB 931203.002.2 Heledon LED/20W-2700K,Ra92 D LED ceiling light

In stock
SKU: 940600
€193.09
Into a basketIn the basketGo

Overview

Heledon LED/20W-2700K, Ra92 D LED ceiling light

Feature Value
System power: 20 W
Rated luminous flux: 2000 lm
Housing color: white
Housing material: aluminum
Protection class (IP): IP20
Outer diameter: 87 mm
Socket: without
Light source: LED not replaceable
Protection class: I
With light source: yes
With operating device: yes
Suitable for recessed mounting: no
Height/depth: 197 mm
With motion detector: no
Suitable for wall mounting: no
Color temperature: 2700 K
Nominal voltage: 220 to 240 V
Color rendering index CRI: 90-100
Suitable for ceiling mounting: yes
Light distribution: symmetrical
Suitable for lamp power: 20 W
Operating device: LED operating device, current-controlled
Beam angle: narrow beam 11 - 20°
Impact resistance: IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24: no
Reflector: without
Suitable for number of light sources: 1
Luminous flux: 2000 lm
Covering of the luminaire with thermal insulation material possible: yes
Voltage type: AC
Light color: white
Suitable for track mounting: no
Adjustability: not adjustable
Suitable for clamp mounting: no
Suitable for pendulum suspension: no
Suitable for platform/floor mounting: no
Suitable for truss mounting: no
With light sensor: no
Suitable for surface mounting: yes
Suitable for cable system: no
Surface protection: powder-coated
Brushed surface: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (device-integrated): no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming phase control: no
Dimming Phase control: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: yes
Light distributor: Focus lens
Light emission: direct
Total harmonic distortion (THD): 0.20
Protection class (NEMA): other
Rated ambient temperature according to IEC 62722-2-1: 25 °C
Type of wiring: Termination
Power factor: 0.90
Number of poles: 3
Conductor cross-section: 2.50 mm²
Connection type: Plug-in terminal
Luminous efficacy: 100 lm/W
Suitable for computer workstations in accordance with EN 12464-1: yes
Glow wire test in accordance with IEC 60695-2-11: 650 °C - 30 s
Photobiological safety in accordance with EN 62471: RG1
Color consistency (McAdam ellipse): SDCM2
Replaceable operating device: yes
DALI-2 dimming: no
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C: 90 %
Failure rate with an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq): 10 %
Constant luminous flux control: no
Color temperature adjustable: no
Luminous flux adjustable: no
Beam angle adjustable: no
Max. number of luminaires circuit breaker B16: 34
Max. Number of lights circuit breaker C16: 57
Integrated emergency power supply: no
IFTTT support available: no
Glare limitation (UGR): 10.70
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no

Characteristics

Total harmonic distortion (THD)0.20
Rated luminous flux2000 lm
HABHeledon LED/20W-2700K,Ra92 D
ManufacturerRZB
HAN931203.002.2
GTIN4051859838883
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Beam angleNarrow beam 11 - 20°
Beam angle adjustableNo
Replaceable operating deviceYes
Outer diameter87 mm
Rated ambient temperature according to IEC 62722-2-125°C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Glare limitation (UGR)10.70
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DALI-2No
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM2
Color temperature2700K
Color temperature adjustableNo
Color rendering index CRI90-100
VersionWithout
Suitable for number of light sources1
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for lamp power20W
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingNo
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth197 mm
IFTTT support availableNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Constant luminous flux controlNo
Power factor0.90
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
Luminaire luminous efficacy100lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux2000lm
Luminous flux adjustableNo
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.90 %
Light distributorFocus lens
Light distributionSymmetrical
Max. number of luminaires Circuit breaker B1634
Max. number of luminaires Circuit breaker C1657
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Emergency power supply integratedNo
Brushed surfaceNo
Surface protectionPowder coated
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Number of poles3
ReflectorWithout
Impact resistanceIK06
IP protection)IP20
Protection class (NEMA)Other
Protection classI
Voltage typeAC
System performance20W
AdjustabilityNot adjustable
Housing materialAluminum
