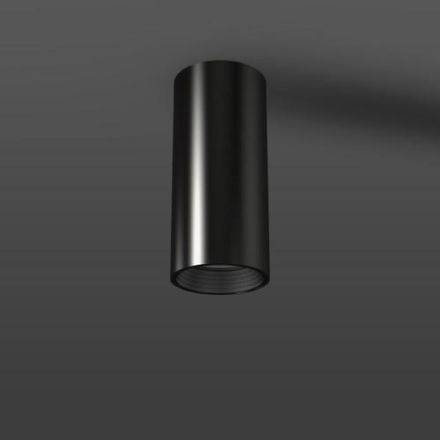

RZB 931203.003.1 Heledon LED/20W-4000K,Ra92 D LED ceiling light

RZB 931203.003.1 Heledon LED/20W-4000K,Ra92 D LED ceiling light

In stock

SKU: 937702

Price on request

€193.09

€0

Into a basketIn the basketGo

Overview

Heledon LED/20W-4000K, Ra92 D LED ceiling light

Feature	Value
System power:	20 W
Rated luminous flux:	2250 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	87 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	197 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	20 W
Operating device:	LED operating device, current-controlled
Beam angle:	narrow beam 11 - 20°
Impact resistance:	IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	without
Suitable for number of light sources:	1
Luminous flux:	2250 lm
Covering of the luminaire with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC 62722-2-1:	25 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	113 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2
Replaceable operating device:	yes
DALI-2 dimming:	no
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	90 %
Failure rate with an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	10 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Max. number of luminaires circuit breaker B16:	34
Max. Number of lights circuit breaker C16:	57
Integrated emergency power supply:	no
IFTTT support available:	no
Glare limitation (UGR):	11.10
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)0.20

Rated luminous flux2250 lm

HABHeledon LED/20W-4000K,Ra92 D

Manufacturer

HAN931203.003.1

GTIN4051859838944

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleNarrow beam 11 - 20°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter87 mm

Rated ambient temperature according to IEC 62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)11.10

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI90-100

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power20W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth197 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy113lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2250lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.90 %

Light distributorFocus lens

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B1634

Max. number of luminaires Circuit breaker C1657

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorWithout

Impact resistanceIK06

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

System performance20W

AdjustabilityNot adjustable

Housing materialAluminum
