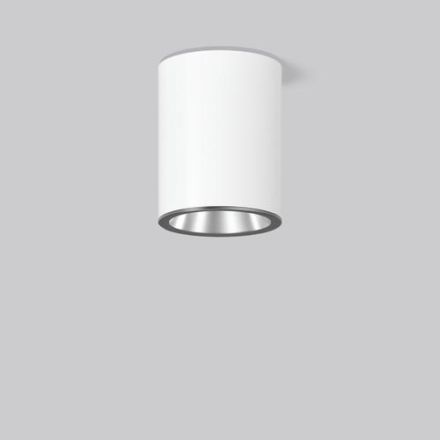

RZB 931251.002.1 Andho LED/13W-4000K D114,H14 LED ceiling light

RZB 931251.002.1 Andho LED/13W-4000K D114,H14 LED ceiling light

In stock

SKU: 942345

Price on request

€220.88

€0

Into a basketIn the basketGo

Overview

Andho LED/13W-4000K D114,H14 LED ceiling light

Feature	Value
System power:	13 W
Rated luminous flux:	1700 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP66
Outer diameter:	114 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	147 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Suitable for lamp power:	13 W
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Impact resistance:	IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Suitable for number of light sources:	1
Luminous flux:	1700 lm
Cover material:	transparent glass
Cover of the luminaire with Thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC 62722-2-1:	-20 to 35 °C
Type of wiring:	suitable for through-wiring
Power factor:	0.55
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	131 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	yes
Glow wire test in accordance with IEC 60695-2-11:	960 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2
Replaceable operating device:	yes
DALI-2 dimming:	no
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	80 %
Failure rate with an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	10 %
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Max. number of luminaires circuit breaker B16:	27
Max. Number of lights circuit breaker C16:	46
Integrated emergency power supply:	no
IFTTT support available:	no
Glare limitation (UGR):	17
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Rated luminous flux1700 lm

HABAndho LED/13W-4000K D114,H14

Manufacturer

HAN931251.002.1

GTIN4051859917021

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter114 mm

Rated ambient temperature according to IEC 62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)17

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionWithout

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power13 W

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth147 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.55

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy131lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1700lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %

Light distributorReflector

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B1627

Max. number of luminaires Circuit breaker C1646

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorOther

Impact resistanceIK06

IP protection)IP66

Protection class (NEMA)Other

Protection classI

Voltage typeAC

System performance13 W

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
