RZB 09-6555.040 3W,sek.12 50V,Stest+Akku 3h LED emergency light module

In stock
SKU: 530710
€143.38
Into a basketIn the basketGo

Overview

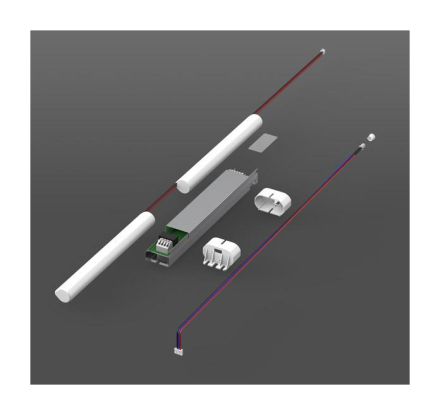

Device for: LED lamps 3W, options: self-test without feedback LED display two-color with battery with housing Operating mode: standby mode continuous mode Nominal operating time: 3 h Emergency light kit for LED lamps with an LED voltage of 12 V, 50 V. Consists of emergency light module in metal housing and NIMH battery 4.8 V, 4.5 Ah. With status display. Lamp operation optionally possible in continuous or standby mode. With automatic self-test. Display of the test results via multi-colored status LED on the lamp. Suitable for use in systems according to 0108-100 / EN 50172. U: 220, 240 VF: 50, 60Hz Battery type: NiMH battery Battery voltage: 4.8 V Battery capacity: 4.5 Ah Protection class: I Protection type: IP20 L: 210mm W: 31.50mm H: 21.50mm LA: 206mm Assembly: with screws D4 Cable connection: with plug-in terminal

Property Value
Light source: LED
With remote switch connection: no
Nominal voltage: 220 to 240 V
Circuit type: Maintained operation/standby operation
Protection class: I
Monitoring device: automatic self-test
Rated operating time: 3 h

Characteristics

Circuit typeMaintained/standby mode
HAB3W,sec.12 50V,test+battery 3h
ManufacturerRZB
HAN09-6555.040
GTIN4051859087816
LampsLED
Nominal voltage220 to 240 V
Protection classI
RZB 09-6555.040 3W,sek.12 50V,Stest+Akku 3h LED emergency light module
RZB 09-6555.040 3W,sek.12 50V,Stest+Akku 3h LED emergency light module
€143.38
Into a basketIn the basketGo
