RZB 652217.002 GSUN S 2.2W 1/3/8h 24m white self-test LED emergency light

RZB 652217.002 GSUN S 2.2W 1/3/8h 24m white self-test LED emergency light

In stock

SKU: 897043

Price on request

€149.32

€0

Overview

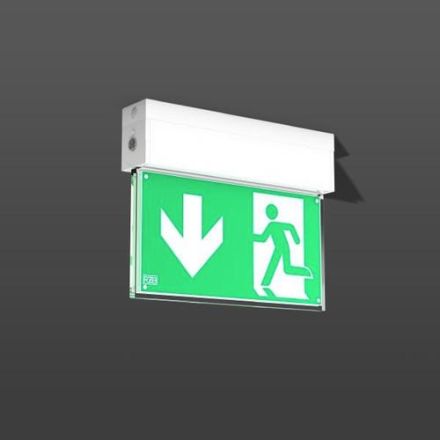

Light for escape route marking. Housing made of powder-coated extruded aluminum profile. 4 escape sign films and 1 white film including fastening pins for attaching included. Universal fastening kit for ceiling and wall mounting. Integrated operating devices. Single battery system with automatic self-test. With NFC programming interface.

Property	Value
Housing color:	white
Protection rating (IP):	IP30
Protection class:	I
Voltage type:	AC
Detection range:	24 m
Length:	247 mm
Width:	45 mm
Height/depth:	195 mm
Battery type:	NiMh
Nominal operating time:	1 to 8 h
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
Monitoring device:	automatic self-test
Mounting type:	Wall mounting/ceiling mounting
Housing material:	aluminum
Supply:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of Wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
