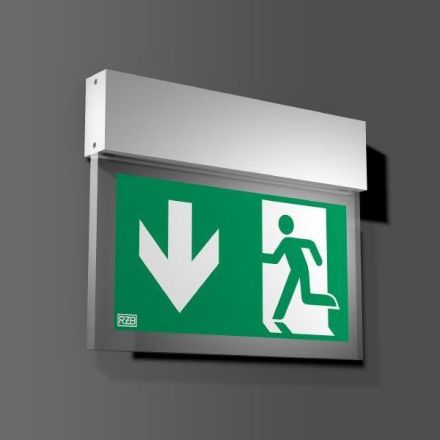

RZB 671722.004.1.89 Halyxx 4.1W-4000K LED emergency light

RZB 671722.004.1.89 Halyxx 4.1W-4000K LED emergency light

In stock

SKU: 897635

Price on request

€286.57

€0

Overview

Light for escape route marking. Housing made of anodized or powder-coated extruded aluminum profile. Highly transparent plastic display panel with escape sign on one side. Integrated operating device. For connection to emergency power supply. With AC-Control monitoring module for Luxifair central battery systems. Specify symbol number for escape sign when ordering!

Property	Value
Housing color:	Aluminum
Protection type (IP):	IP40
Protection class:	I
Voltage type:	AC/DC
Detection range:	30 m
Color temperature:	4000 K
Length:	340 mm
Width:	40 mm
Height/Depth:	270 mm
Max. System performance:	5.80 W
Battery type:	other
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting
Housing material:	Aluminium
Suitable for type of label:	Sticker
Feed-in:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	24 to 26 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Power factor:	0.55
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
