RZB 671739.003.1.89 Ceiling Halyxx 4.7W 4000K LED emergency light

RZB 671739.003.1.89 Ceiling Halyxx 4.7W 4000K LED emergency light

In stock

SKU: 943455

Price on request

€262.33

€0

Overview

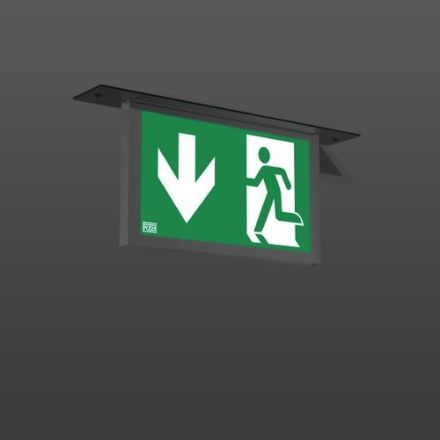

Light for escape route marking. Installation housing made of sheet steel. Ceiling plate made of stainless steel, glossy or powder-coated. Display panel made of highly transparent plastic with escape sign on one or two sides. Integrated operating device. For connection to emergency power supply. With AC-Control monitoring module for Luxifair central battery systems. Specify symbol number for escape sign when ordering!

Property	Value
Housing color:	black
Protection type (IP):	IP40
Protection class:	I
Voltage type:	AC/DC
Detection range:	19 m
Color temperature:	4000 K
Length:	320 mm
Width:	55 mm
Height/Depth:	140 mm
Max. System performance:	4.70 W
Battery type:	other
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Transparent plastic
Installation width:	42 mm
Installation length:	305 mm
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Installation
Housing material:	Steel
Suitable for marking type:	other
Feed-in:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	2
Number of lamp heads:	1
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Power factor:	0.55
Installation height/depth:	90 mm
Type of wiring:	suitable for through-wiring
Number of poles:	5
Conductor cross-section:	1.50 mm²
Connection type:	Plug connection
