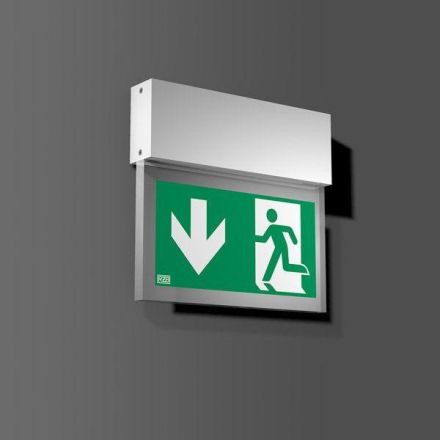

RZB 671746.004.1 Halyxx 2.4W-4000K LED emergency light

RZB 671746.004.1 Halyxx 2.4W-4000K LED emergency light

In stock

SKU: 897402

Price on request

€249.01

€0

Overview

Light for escape route marking. Housing made of anodized or powder-coated extruded aluminum profile. Highly transparent plastic display panel with escape sign on one side. Integrated operating devices. Single battery system with automatic self-test. Specify symbol number for escape sign when ordering!

Property	Value
Housing color:	Aluminum
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC
Detection range:	19 m
Color temperature:	4000 K
Length:	235 mm
Width:	40 mm
Height/depth:	220 mm
Battery type:	NiMh
Nominal operating time:	3 h
Operating device:	electronic transformer
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Wall mounting
Housing material:	aluminum
Suitable for marking type:	Sticker
Feed:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	20 to 21 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	Termination
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug connection
