RZB 671983.002.2.89 Universal-S LE LED emergency light

RZB 671983.002.2.89 Universal-S LE LED emergency light

In stock

SKU: 533802

Price on request

€207.59

€0

Overview

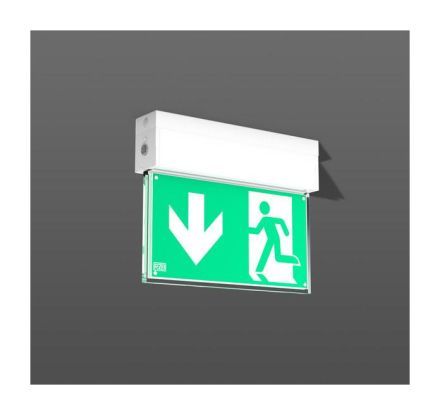

Escape sign disc light with highly efficient LED technology. Housing made of high-quality aluminum. Very low maintenance costs thanks to the latest LED technology. LED lifespan approx. 50,000 hours. 3-part pictogram set included for easy attachment. Universally applicable, can be used as a ceiling or wall-mounted version by changing the end caps. Fitting made of powder-coated extruded aluminum profile. Plastic display disc with escape sign for marking escape routes on one or two sides. Four films with escape signs for marking escape routes and a white film for attachment included. With AC-Control monitoring module for Luxifair central battery systems. Light source (LED) included in delivery.

Property	Value
Housing color:	white
Protection rating (IP):	IP30
Protection class:	I
Voltage type:	AC/DC
Detection range:	24 m
Color temperature:	4000 K
Length:	247 mm
Width:	45 mm
Height/Depth:	195 mm
Max. System performance:	4.70 W
Battery type:	other
Operating device:	not required
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Aluminium
Power supply:	central (central battery)
Function:	Escape route marking
With Pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	21 to 23 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 40 °C
Power factor:	0.83
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
