RZB 672010.004 Tenuo LED 5W 350x56x200 LP500 8h LED emergency light

RZB 672010.004 Tenuo LED 5W 350x56x200 LP500 8h LED emergency light

In stock

SKU: 527402

Price on request

€573.39

€0

Overview

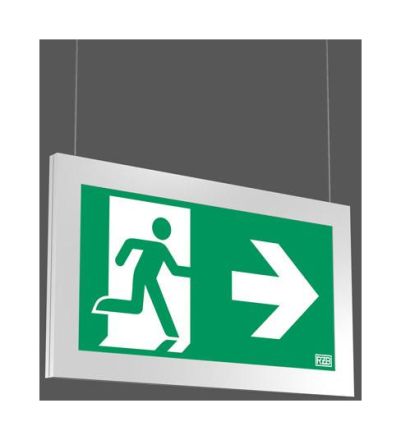

Extremely flat escape sign light with highly efficient LED technology. One-piece, milled and brushed aluminum frame, high-quality anodized. Specially calculated thermal management. LED service life 50,000 hours. Very high luminance greater than 900 cd/m2. Perfect uniformity of illumination in the pictogram thanks to display screen with patented MicroLens technology. Housing made of aluminum, matt silver anodized. Display screen made of plastic with patented microlens technology. With rescue sign for escape route marking on two sides. With steel cable suspension. Single battery system with integrated self-test. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Housing color:	Aluminium
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC
Detection range:	30 m
Color temperature:	5700 K
Length:	350 mm
Width:	56 mm
Height/Depth:	200 mm
Max. System performance:	7.10 W
Battery type:	NiCd
Nominal operating time:	8 h
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	pendulum
Housing material:	aluminum
Power supply:	decentralized (single battery)
Function:	escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	Diffuser lens/optics/panel
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	suitable for through wiring
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
