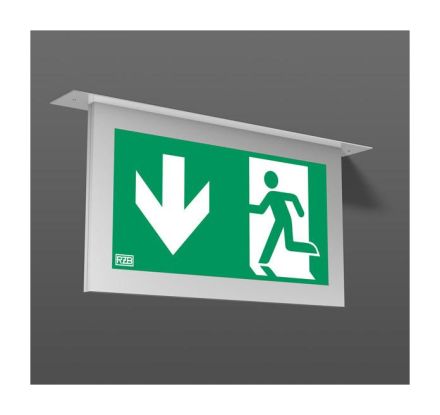

RZB 672030.004 Tenuo LED 2.5W 420x55x262 1xMotiv LED emergency light

RZB 672030.004 Tenuo LED 2.5W 420x55x262 1xMotiv LED emergency light

In stock

SKU: 529320

Price on request

€433.80

€0

Overview

Extremely flat escape sign light with highly efficient LED technology. One-piece, milled and brushed aluminum frame, high-quality anodized. Specially calculated thermal management. LED service life approx. 50,000 hours. Very high luminance greater than 900 cd/m2. Perfect uniformity of illumination in the pictogram thanks to display screen with patented MicroLens technology. Housing made of aluminum, matt silver anodized. Display screen made of plastic with patented microlens technology. With escape sign for escape route marking on one side. Control gear installed. Light source (LED) included in delivery. IP20 in installation space, IP40 from ceiling exit. Energy efficiency class A++

Property	Value
Housing color:	Aluminium
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC/DC
Detection range:	30 m
Color temperature:	5700 K
Length:	420 mm
Width:	55 mm
Height/Depth:	202 mm
Max. System performance:	3.80 W
Battery type:	other
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Transparent plastic
Installation width:	40 mm
With light source:	yes
Installation length:	400 mm
Monitoring device:	without
Mounting type:	Installation
Housing material:	Aluminium
Feed-in:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
Light distributor:	Diffuser lens/optics/panel
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Power factor:	0.60
Installation height/depth:	90 mm
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Screw connection
