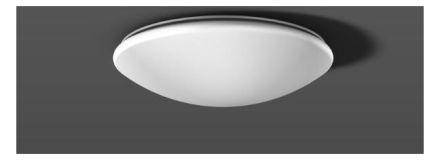

RZB 672059.002.6.07 Flat Polymero LED emergency light

RZB 672059.002.6.07 Flat Polymero LED emergency light

In stock

SKU: 898241

Price on request

€422.06

€0

Overview

Decorative round surface-mounted light. For escape route lighting. Powder-coated metal fitting. Diffuser made of plastic (polycarbonate), opal, impact-resistant. Diffuser attached with patented locking technology (pressure lock). Suitable for ceiling mounting, wall mounting. Single battery system with automatic self-test and feedback via DALI bus exclusively to the RZB DALI monitoring system.

Property	Value
Housing color:	white
Protection type (IP):	IP40
Protection class:	I
Voltage type:	AC
Color temperature:	4000 K
Height/depth:	120 mm
Max. system power:	20 W
Battery type:	NiCd
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	2250 lm
Luminous flux in standby mode:	210 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK10
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
Outer diameter:	460 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Material of the housing:	Steel
Suitable for type of marking:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	8
Number of Lamp heads:	1
LED nominal current at constant current:	83 to 91 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 25 °C
Power factor:	0.95
Type of Wiring:	suitable for through wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
