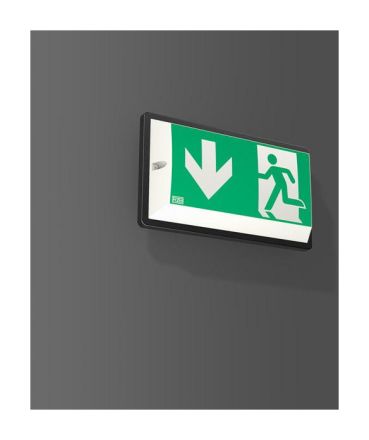

RZB 672128.003.89 Varioplast 3x1W with AC Control LED emergency light

RZB 672128.003.89 Varioplast 3x1W with AC Control LED emergency light

In stock

SKU: 530616

Price on request

€176.11

€0

Overview

Protection class IP 55, dust and water jet protected. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which a deposit of non-conductive dust on the luminaire can be expected. Ball impact resistant according to DIN 18032-03. Suitable for use in the food and beverage industry. Easy-to-assemble design thanks to fold-down mounting plate. 4 films for marking escape routes included. Plastic bracket (polycarbonate). Plastic cover (polycarbonate), opal. Self-adhesive film set with escape signs for marking escape routes included. With AC-Control monitoring module for Luxifair central battery systems. Energy efficiency class A++

Property	Value
Housing color:	black
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC/DC
Detection range:	24 m
Color temperature:	6500 K
Length:	320 mm
Width:	80 mm
Height/Depth:	186 mm
Max. System performance:	5.80 W
Battery type:	other
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Opal plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting
Housing material:	Plastic
Suitable for marking type:	other
Feed-in:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	3
Number of lamp heads:	1
LED nominal current at constant current:	23 to 25 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	yes
Rated ambient temperature according to IEC62722-2-1:	-10 to 40 °C
Power factor:	0.55
Type of wiring:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
