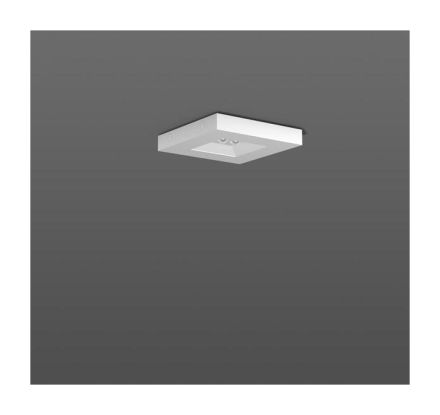

RZB 672170.002.1.04 Centryxx 7.5W 198x198x38 multidig LED emergency light

RZB 672170.002.1.04 Centryxx 7.5W 198x198x38 multidig LED emergency light

In stock

SKU: 530640

Price on request

€301.06

€0

Overview

Protection class IP 65, dust-tight and protected against water jets from all directions. Extremely flat design to match modern architecture. Ball-proof according to DIN 18032-03. Large luminaire spacing for escape route lighting thanks to special lenses. Very low maintenance costs thanks to automatic self-test. Best thermal management thanks to die-cast aluminum fitting. IP 65 versions suitable for use in the food and beverage industry. Plastic cover (polycarbonate). Die-cast aluminum bracket, powder-coated. Clear plastic lenses for area lighting. Control gear and battery built in. Single battery system with integrated self-test and feedback to the Multidigit and MWEB systems. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Housing color:	white
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC
Color temperature:	6500 K
Length:	198 mm
Width:	198 mm
Height/Depth:	38 mm
Max. System performance:	6.70 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	390 lm
Luminous flux in standby mode:	310 lm
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Ceiling mounting
Material of the housing:	Aluminium
Suitable for type of marking:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	28 to 30 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Type of wiring:	suitable for through-wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
