RZB 672170.002.4.07 Ceiling Centryxx LED emergency light

RZB 672170.002.4.07 Ceiling Centryxx LED emergency light

In stock

SKU: 943444

Price on request

€309.36

€0

Overview

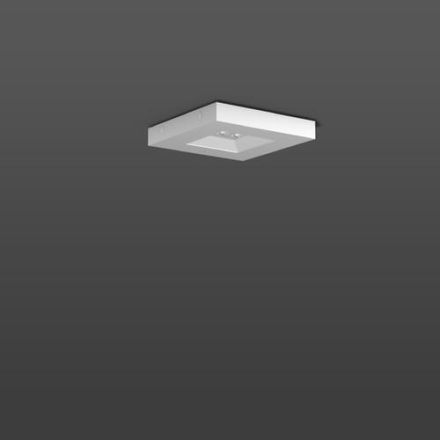

Flat square surface-mounted light. For escape route lighting. Die-cast aluminum fitting, powder-coated, plastic cover (polycarbonate). Ball-proof in accordance with DIN 18032-03. Approved for use in the food and beverage industry.

Feature	Value
Housing color:	white
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC
Color temperature:	6500 K
Length:	198 mm
Width:	198 mm
Height/Depth:	38 mm
Max. System performance:	6.30 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	460 lm
Luminous flux in standby mode:	400 lm
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Ceiling mounting
Material of the housing:	Aluminium
Suitable for type of marking:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	26 to 29 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Type of wiring:	Termination
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
