RZB 672170.003.2 Centryxx LED emergency light

In stock

SKU: 897983

Price on request

€248.48

€0

Overview

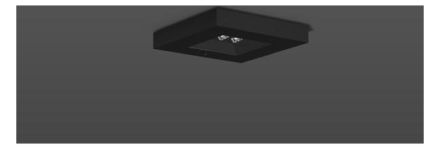

Flat square surface-mounted light. For escape route lighting. Die-cast aluminum fitting, powder-coated. Plastic cover (polycarbonate). With deep-beam plastic lenses for area lighting. Integrated operating devices. Single battery system with automatic self-test. Ball-proof in accordance with DIN 18032-03. Approved for use in the food and beverage industry.

Property	Value
Housing color:	black
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC
Color temperature:	6500 K
Length:	198 mm
Width:	198 mm
Height/Depth:	38 mm
Max. System performance:	6.70 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	350 lm
Luminous flux in standby mode:	320 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Ceiling mounting
Material of the housing:	Aluminium
Suitable for type of marking:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at Constant current:	28 to 30 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Type of wiring:	suitable for through wiring
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
