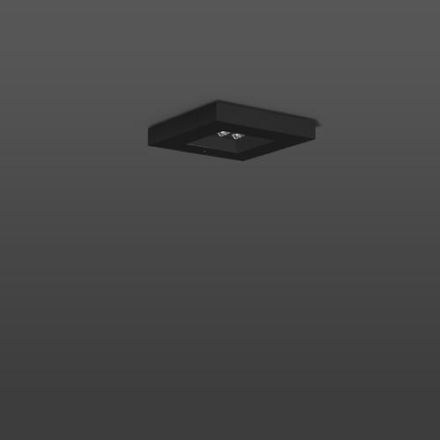

RZB 672170.003.4.07 Ceiling Centryxx LED emergency light

In stock
SKU: 943451
€309.36
Into a basketIn the basketGo

Overview

Flat square surface-mounted light. For escape route lighting. Die-cast aluminum fitting, powder-coated, plastic cover (polycarbonate). Ball-proof in accordance with DIN 18032-03. Approved for use in the food and beverage industry.

Feature Value
Housing color: black
Protection rating (IP): IP65
Protection class: I
Voltage type: AC
Color temperature: 6500 K
Length: 198 mm
Width: 198 mm
Height/Depth: 38 mm
Max. System performance: 6.30 W
Battery type: NiMh
Nominal operating time: 3 h
Rated luminous flux according to IEC 62722-2-1: 410 lm
Luminous flux in standby mode: 350 lm
Operating device: EVG
Light source: LED not replaceable
Impact resistance: IK08
Socket: without
Nominal voltage: 220 to 240 V
With remote switch connection: no
Cover material: transparent plastic
With light source: yes
Monitoring device: Monitoring module (centrally supplied system)
Mounting type: Ceiling mounting
Material of the housing: Aluminium
Suitable for type of marking: other
Feed-in: decentralized (single battery)
Function: Escape route lighting
With pictogram: no
Suitable for number of lamps: 1
Number of lamp heads: 1
LED nominal current at constant current: 26 to 29 mA
Light distributor: without
Protection class (NEMA): other
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: 5 to 30 °C
Type of wiring: Termination
Number of poles: 6
Conductor cross-section: 2.50 mm²
Connection type: Plug connection

Characteristics

HAB672170.003.4.07 Ceiling Centryxx
ManufacturerRZB
HAN672170.003.4.07
GTIN4051859767107
Connection typePlug connection
Type of wiringDiploma
Rated luminous flux according to IEC 62722-2-1410lm
Rated ambient temperature according to IEC62722-2-15 to 30 °C
Operating deviceElectronic ballast
Width198 mm
Color temperature6500K
VersionWithout
FunctionEscape route lighting
Suitable for number of lamps1
Housing colorBlack
Height/Depth38 mm
LED nominal current at constant current26 to 29 mA
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Length198 mm
Max. system performance6.30W
With light sourceYes
Mounting typeCeiling mounting
Nominal voltage220 to 240 V
Number of poles6
Impact resistanceIK08
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic transparent
Housing materialAluminum
